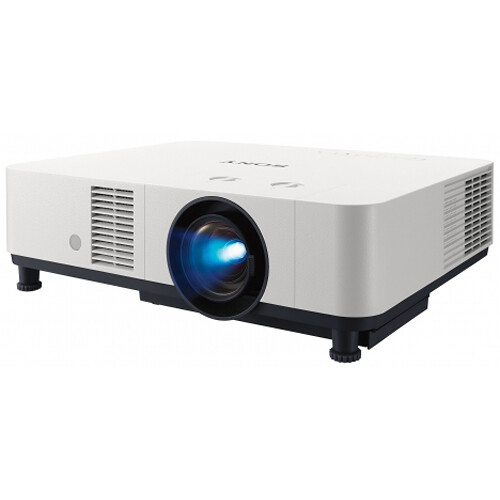

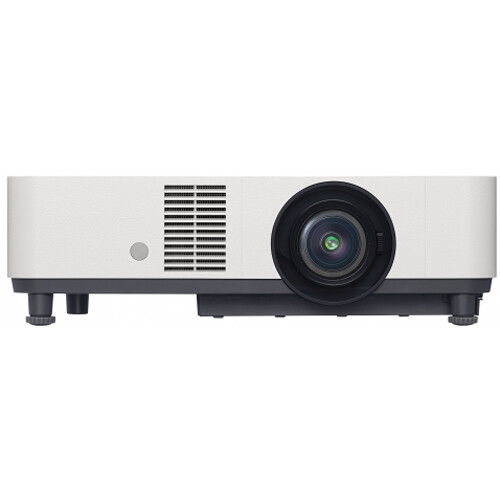

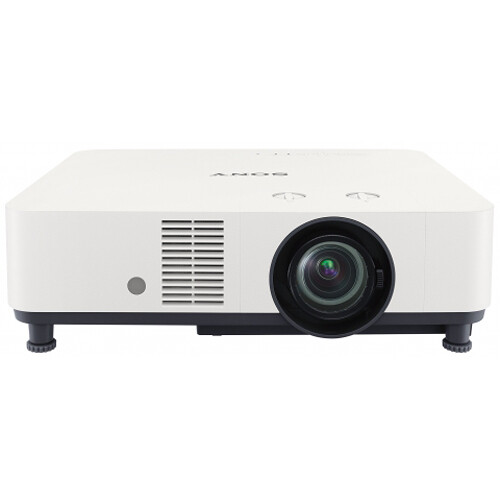

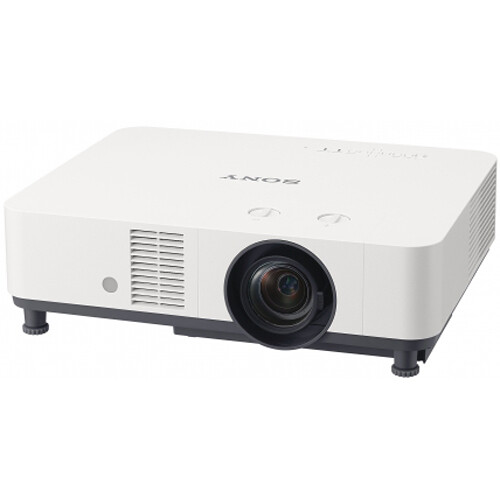

Designed to provide professional settings with extended durability and long-lasting, high-quality output, the Sony VPL-PHZ51 5300-Lumen WUXGA Laser 3LCD Projector features an extremely bright and high resolution 5300-lumen WUXGA image with Z-Phosphor laser light and an anti-dust system. To make sure this kind of output maintains rich color in any lighting environment, Sony utilizes their BrightEra Optics with a host of imaging technologies. This makes the VPL-PHZ51 an ideal solution for corporate conference rooms, lecture halls, and even Esport simulations. Installation is flexible with tabletop or ceiling mounting, and lens shift plus keystone correction ensures you'll achieve a proportional image on a wall or screen.
Sony Imaging Technologies
Sony uses a wide variety of technologies to ensure that you'll enjoy consistent, high-quality output regardless of location.
- Reality Creation: Boosts the resolution close to 4K for increased quality, and uses Reality Text to improve text clarity.
- Bright View: Processing technology that brightens images while maintaining rich color representation in bright rooms.
- Intelligent Settings: Simplifies installation and maximizes quality based on usage, image detail, color richness and fidelity, light output, cooling level, and output noise.
- Intelligent Settings with Ambiance: Using the ambient light sensor to measure room brightness, Bright View mode and Reality Creation are auto-adjusted to better suit the room.
Image Correction
To achieve a proportional image, Sony provides +55% vertical lens shift. With direct movement of the lens, you can better utilize existing installation infrastructure and eliminate the need for keystone correction. However, if you need keystone correction, it's there. You get 30° horizontal and vertical keystone correction with the VPL-PHZ51.
Anti-Dust System
In corporate settings, a projector can be mounted for a very long time, which is why Sony incorporated an anti-dust system to prevent reduced brightness over time. It does this by completely sealing the laser light source, and inserting a dust filter within the 3LCD panel cooling dust. There's even a dust clogging sensor to let you know when it's time to clean the filter system.
More Economical
With Auto Light Output working with Ambiance, visibility and image quality are maximized as power consumption is reduced.
Data Cloning
Projector settings can be copied to an (optional) USB flash drive and used to quality setup additional projectors.
Auto Input Select
The active source input is automatically selected to streamline operation.
Auto Power On
Save some time by having the VPL-PHZ51 automatically turn on when a connected computer is switched on.
Additional Features
- Slim and lightweight construction
- Supports content protected sources, such as 4K Blu-ray players
- Image scaler can convert 4K input to WUXGA while maintaining close to 4K quality
EAN: 027242925250
Sony PHZ51 Specs
Key Specs
| Display System | LCD |
| Native Resolution | 1920 x 1200 |
| Maximum Brightness | 5300 Lumens |
| Throw Ratio | 1.23 to 1.97:1 |
| Projection Size | 40 to 300" / 1.0 to 7.6 m |
| HDR Support | No, |
| Inputs/Outputs | 1x DE-15/DB-15 Video Input 1x HDMI Audio, Video Input 1x HDMI Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, LAN, Video Input/Output 1x RCA (Composite) Video Input 1x 1/8" / 3.5 mm Mini Audio Output 1x DE-9/DB-9 (RS-232) Remote Input 1x RJ45 (Ethernet) LAN Input/Output 1x USB-A Data Input 1x USB-A Power Input |
| Light Source | Laser Phosphor |
Image Display
| Display System | LCD |
| Native Resolution | 1920 x 1200 |
| Supported Resolutions | Minimum: 640 x 480 @ 60 Hz Maximum: 4096 x 2160 @ 24/25/30/60 Hz |
| Maximum Brightness | 5300 Lumens |
| Aspect Ratio | Native: 16:10 |
| Scan | Horizontal: 15 to 92 kHz Vertical: 24 to 92 Hz |
Lens
| Includes Lens | Yes |
| Focus | Manual |
| Lens Shift | Vertical: -35 to 55% Horizontal: ± 15% |
| Throw Ratio | 1.23 to 1.97:1 |
| Projection Size | 40 to 300" / 1.0 to 7.6 m |
Features
| Keystone Correction | Vertical: ± 30° Horizontal: ± 30° |
| HDR Support | No, |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Ceiling Mountable | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 16 W |
Input/Output Connectors
| Inputs/Outputs | 1x DE-15/DB-15 Video Input 1x HDMI Audio, Video Input 1x HDMI Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, LAN, Video Input/Output 1x RCA (Composite) Video Input 1x 1/8" / 3.5 mm Mini Audio Output 1x DE-9/DB-9 (RS-232) Remote Input 1x RJ45 (Ethernet) LAN Input/Output 1x USB-A Data Input 1x USB-A Power Input |
| HDCP Support | Not Specified by Manufacturer |
Hardware
| Mobile App Compatible | No |
| Bluetooth | No |
General
| Light Source | Laser Phosphor |
| Fan Noise | Medium Brightness: 37 dB |
| Supported Languages | Arabic Czech Dutch English Farsi Finnish French German Greek Hungarian Indonesian Italian Japanese Korean Norwegian Polish Portuguese Romanian Russian Simplified Chinese Slovak Spanish Swedish Thai Turkish Vietnamese |
| Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.0 to 4.7 A |
| Power Consumption | Medium Brightness: 463 W Standby Mode (Lamp Off): 0.5 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 80% (Non-Condensing) |
| Dimensions (W x H x D) | 16.6 x 5.1 x 13.3" / 422.0 x 129.0 x 338.0 mm 16.6 x 3.9 x 13.1" / 422.0 x 100.0 x 333.0 mm (Without Dust Filter, Protrusions) |
| Weight | 15.4 lb / 7 kg |
Packaging Info
| Package Weight | 20.5 lb |
| Box Dimensions (LxWxH) | 22.6 x 19.7 x 10.1" |
In the Box
- Sony VPL-PHZ51 5300-Lumen WUXGA Laser 3LCD Projector
- RM-PJ8 Remote Commander
- 5-Year Manufacturer Warranty (5 Years or 12,000 Hours, Whichever Comes First)
