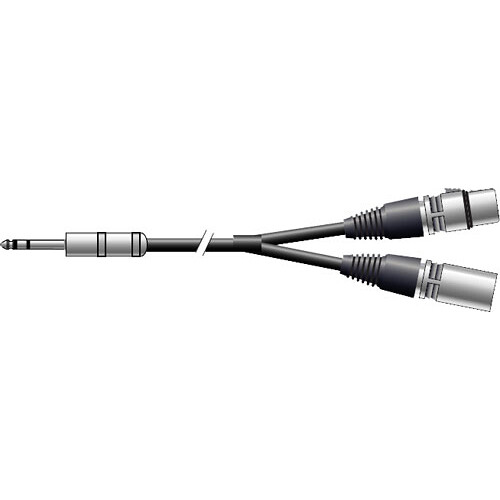

Pro Co Sound TRS 1/4 Male to 2 XLR (1 Male, 1 Female) Y-Cable - 10
EAN: 703272042890
This Pro Co Sound TRS 1/4 Male to 2 XLR (1 Male, 1 Female) Y-Cable is an insert patch cable that allows a mixing console to send/return signals to an outboard effect processor. The cable is wired as follows: tip on the TRS to pin 2 on the female XLR and ring on the TRS to pin 2 on the male XLR. Pins 1 and 3 are bridged on the XLRs.
ShowSavers TRS 1/4 connector
Neutrik male and female connectors
Typical configuration includes sends going through the tip and returns through the ring while the sleeve is the common ground
EAN: 703272042890
This Pro Co Sound TRS 1/4 Male to 2 XLR (1 Male, 1 Female) Y-Cable is an insert patch cable that allows a mixing console to send/return signals to an outboard effect processor. The cable is wired as follows: tip on the TRS to pin 2 on the female XLR and ring on the TRS to pin 2 on the male XLR. Pins 1 and 3 are bridged on the XLRs.
ShowSavers TRS 1/4 connector
Neutrik male and female connectors
Typical configuration includes sends going through the tip and returns through the ring while the sleeve is the common ground
Pro Co Sound IPTBQXFXM-10 Specs
| Connector 1 | 1 x 1/4" TRS Male Straight |
| Connector 2 | 1 x XLR 3-Pin Male Straight 1 x XLR 3-Pin Female Straight |
| Cable Length | 10` / 3.05 m |
| Wire Gauge | 20 AWG |
| Shielding | 72% Spiral |
Packaging Info
| Package Weight | 0.7 lb |
| Box Dimensions (LxWxH) | 12 x 5.8 x 1" |
In the Box
- Pro Co Sound TRS 1/4" Male to 2 XLR (1 Male, 1 Female) Y-Cable - 10`
- 10-Year Manufacturer Warranty
