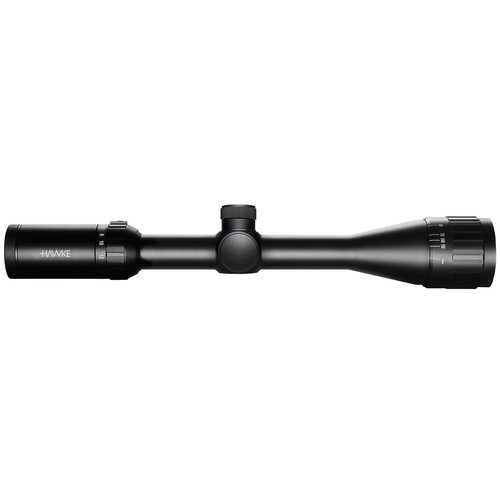

Hawke Sport Optics 4-12x40 Vantage AO IR Riflescope (Rimfire .17 HMR Illuminated Duplex Reticle)
Designed for mid to long-range use, the Hawke Optics 4-12x40 Vantage AO IR Riflescope boasts a partially-illuminated crosshair reticle with five selectable brightness levels for use in most lighting conditions in either red or green. Red is ideal for low-light conditions, while green is easier to see in brighter ambient light or when using NVDs in extreme low-light or complete dark. The 40mm objective draws in copious amounts of light versus smaller objectives while maintaining a low profile. Covered turrets help guard against accidental adjustments while a fast-focus collar and knurled rheostat allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing, with a 1 one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof.
Optical Performance
Reticle Details
Use and Handling
Construction Details
Designed for mid to long-range use, the Hawke Optics 4-12x40 Vantage AO IR Riflescope boasts a partially-illuminated crosshair reticle with five selectable brightness levels for use in most lighting conditions in either red or green. Red is ideal for low-light conditions, while green is easier to see in brighter ambient light or when using NVDs in extreme low-light or complete dark. The 40mm objective draws in copious amounts of light versus smaller objectives while maintaining a low profile. Covered turrets help guard against accidental adjustments while a fast-focus collar and knurled rheostat allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing, with a 1 one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof.
Optical Performance
- 4-12x zoom range
- 40mm objective lens
- Eleven-layer anti-reflection fully multi-coated optics
- 26.2-8.7 field of view at 100 yards
Reticle Details
- Duplex crosshair-style reticle designed for .17 HMR caliber rounds
- Placed on second focal plane, sub-tension set at 12x
- Illuminated aiming points on lower vertical axis out to 375 yards
- Round specification:
- Muzzle velocity: 2550 ft/s
- Ballistic coefficient: 0.1251
- Zeroed range: 100 yd
- Scope height: 1.75
- Partially illuminated:
- Knurled Posi-Grip adjustment collar
- Five selectable brightness levels
- Choose between Red and Green colors
- Green is compatible with NVDs for low-light use
- Runs on one included CR2032 coin-cell battery
Use and Handling
- Fast-focus collar
- 1/4 MOA per click impact point correction
- 80 MOA windage and elevation adjustment range
- Side parallax turret, adjustable from 10 yards to infinity
- Low-profile covered turret caps prevent accidental adjustment
- 3.5 long eye relief
- 10-3mm exit pupil
Construction Details
- 1 one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Rated for use on most calibers and recoil-resistant
- Length: 13.6 inches
- Weight: 18.1 ounces
Hawke Sport Optics Vantage Specs
Performance
| Magnification | 4 to 12x |
| Objective Lens Diameter | 40 mm |
| Field of View | 4x: 26.2` @ 100 yd / 8.7 m @ 100 m 12x: 8.7` @ 100 yd / 2.9 m @ 100 m |
| Exit Pupil Diameter | 4x: 10 mm 12x: 3 mm |
| Eye Relief | 3.5" / 89 mm |
In the Box
- Hawke Sport Optics 4-12x40 Vantage AO IR Riflescope (Rimfire .17 HMR Illuminated Duplex Reticle)
- Lens Cloth
- CR2032 Battery
- Ocular Lens Cover
- Objective Lens Cover
