EAN: 818413024564
The 7.6 Multi-Purpose Rail from Really Right Stuff is a double dovetail plate designed to mount to the bottoms of medium and large format cameras, and the rail will also accommodate to a telephoto lens foot that does not exceed 6.75 in length. The rail has two separate 1.6 and 2.8 slotted lengths, so the lens foot can be adjusted on top of the rail.
Once the lens has been secured to the rail with the 1/4 -20 screws and adjusted the MPR-C flange can be installed in ten different positions to prevent twisting on a ball head or clamp. The laser-engraved plate has a 1mm increment scale, so the position of the shot is repeatable, and also keep the image level with the built-in bubble level.
Arca-type compatible
Double dovetail design allows accessories to mount from the top or bottom
Rail slot for lens foot adjustability
Anti-twist MPR-C flange with multiple positions
Laser-engraved 1mm increment scale
Built-in bubble level
Really Right Stuff Mini-Clamp Package
EAN: 818413023185

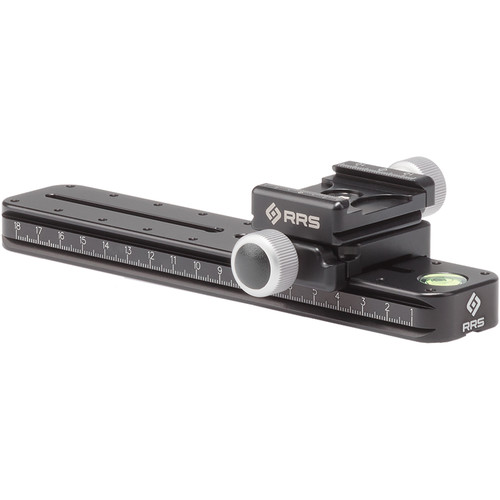

This Mini-Clamp Package from Really Right Stuff includes the Arca-type compatible top B2-FAB screw-knob style quick release clamp with 1/4 -20 hole and the bottom B2-mAS screw-knob style quick release clamp. These clamps are mounted back to back, and the bottom clamp mounts onto camera bars, multipurpose rails, or nodal slides. The top clamp accepts lens plates, lens replacement feet, and camera plates.
Furthermore, this Mini-Clamp Package, used in conjunction with a multipurpose rail, allows a more precise focusing with your camera for macro photography. The package can also work with a camera bar and be used as a nodal point slider for panoramic shots. Both clamps can be set up to be parallel or perpendicular, which allows fore-aft or side-to-side motion.
The B2-FAB Clamp is made from CNC machined 6061-T6 aluminum, and it has an anodized Type II black finish. Index marks are laser-engraved on both sides of the clamp so a position can be repeated.
Really Right Stuff 7.6" Multi-Purpose Rail (1/4"-20) Specs
Thread Size | 1/4"-20 |
Slot Size | Shorter slot length: 1.6" (40 mm) |
Dimensions | 7.6 x 1.5 x 0.7" (192 x 38 x 17 mm) |
Weight | 6.6 oz (187 g) |
In the Box
- MPR-C Flange
- 2 x B107 Screws (1/4"-20 Thread)
- M2.5 Hex Key
- 2 x Safety Stop Screws
- 2 x Flange Screws
- 5/32 Hex Key
- 5-Year Manufacturer Warranty
- Really Right Stuff B2-mAS Screw-Knob Clamp with 1/4"-20 Screw (38mm)
- B2-FAB Screw-Knob Clamp
- 1/4"-20 Mounting Screw
- 5/32" Hex Key
- 5-Year Manufacturer Warranty
- MPR-C Flange
- 1/4"-20 Flat-Head Mounting Screw
- 4 x M3-0.5 Cap-Head
- B107 1/4"-20 Screw
- 5/32" Hex Key
- M2.5 Hex Key
