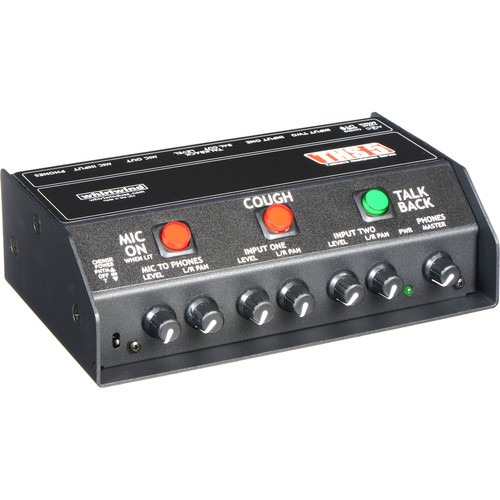

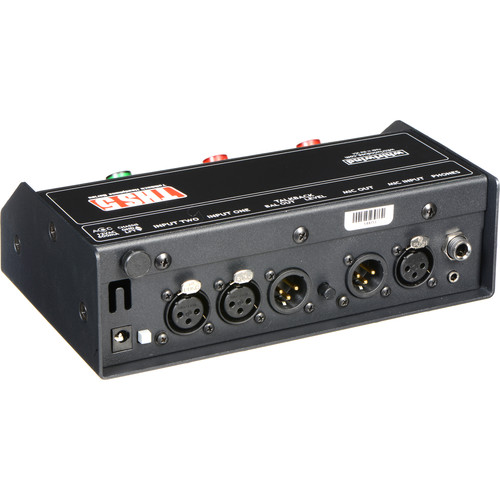

Whirlwind THS 5 Talkback Headphone Box Sports Announcer Console
EAN: 692465025164
The THS 5 Talkback Headphone Box from Whirlwind is a sports announcer console with a professional set of features for the ultimate in monitoring flexibility. There are two balanced XLR inputs for headphones, each with volume and pan control. The announcer s microphone can also be added to the headphone mix via volume and pan pots, while the master headphone volume controls the overall mix. Headphones with an impedance ranging 30 to 600 ohms can be driven to full volume.
The THS 5 offers both main and talkback outputs with a latching Mic On/Off switch, which connects the signal to the Mic outputs. A red light is used to indicate when the mic out is live and is turned off by the Cough and Talkback switches. The 36V phantom power is enough to power most condenser microphones and provides seamless switching when Talkback is activated. The momentary Cough switch silences both the mic to the Talkback output when depressed, while the momentary Talkback switch connects the microphone to the Talkback output and mutes the mic out. The THS 5 ships with a power supply.
EAN: 692465025164
The THS 5 Talkback Headphone Box from Whirlwind is a sports announcer console with a professional set of features for the ultimate in monitoring flexibility. There are two balanced XLR inputs for headphones, each with volume and pan control. The announcer s microphone can also be added to the headphone mix via volume and pan pots, while the master headphone volume controls the overall mix. Headphones with an impedance ranging 30 to 600 ohms can be driven to full volume.
The THS 5 offers both main and talkback outputs with a latching Mic On/Off switch, which connects the signal to the Mic outputs. A red light is used to indicate when the mic out is live and is turned off by the Cough and Talkback switches. The 36V phantom power is enough to power most condenser microphones and provides seamless switching when Talkback is activated. The momentary Cough switch silences both the mic to the Talkback output when depressed, while the momentary Talkback switch connects the microphone to the Talkback output and mutes the mic out. The THS 5 ships with a power supply.
- Two balanced line-level inputs with individual volume and pan controls
- Announcer mic mix to headphones with volume and pan controls
- Master headphone volume adjusts overall mix
- Passive Mic Out for on-air reliability with dynamic mics
- Active line-level Talkback Out with level adjust
- Mic On, Cough, and Talkback switches for control
- 1/4 TRS or 3.5mm headphone jacks
- PS12AC1A power adapter included
Whirlwind THS 5 Specs
| Frequency Response | Mic In to Mic Out: ±0.2 dB 20 Hz to 16 kHz Mic In to Talkback Out at 40 dB Gain: ±0.9 dB 20 Hz to 20 kHz Input 1 & 2 to Headphone Out: ±1.3 dB 20 Hz to 10 kHz Mic In to Headphone Out at 40 dB Gain: ±2.3 dB 20 Hz to 12.5 kHz Mic In to Talkback Out at 0 dB Gain -40 dBV Level: ±1.6 dB 20 Hz to 20 kHz Mic In to Talkback Out at 0 dB Gain -10 dBV Level: ±0.6 dB 20 Hz to 20 kHz |
| THD+N | Mic In to Mic Out at -40 dBV: <0.015% 20 Hz to 20 kHz Mic In to Talkback Out at 40 dB Gain: <0.02% 80 Hz to 4 kHz, <0.04% 50 Hz to 20 kHz Mic In to Headphone Out at 40 dB Gain Input Level “40 dBV: <0.02% 20 Hz to 20 kHz Mic In to Mic Out at 0 dBV: <0.0075% 20 Hz to 20 kHz Mic In to Talkback Out at 40 dB Gain -40 dBV Input Level: <0.03% 50 Hz to 20 kHz Input 1 & 2 to Headphone Out with 0 dBV In and Out: <0.02% 20 Hz to 20 kHz Mic In to Talkback Out: <0.009% 63 Hz to 20 kHz |
| Noise | Mic In to Mic Out: < -118 dBV Mic In to Talkback Out at 40 dB Gain: < -75 dBV Mic In to Talkback Out at 0 dB Gain: < -112 dBV Input 1 & 2 to Headphone Out at 0 dB Gain: < -103 dBV Mic in to Headphone Out at Unity Gain: < -101 dBV Mic in to Headphone Out at 40 dB Gain: < -77.6 dBV |
| Insertion Loss | Mic In to Mic Out: < 0.5 dB 20 Hz to 20 kHz |
| Maximum Input Level | Input 1 & 2 to Headphone Out: +16 dBV Mic In to Mic Out: +20 dBV Mic in to Headphone Out: -5 dBV |
| Maximum Output Level | Input 1 & 2 to Headphone Out (30 Ohms): +8 dBV Input 1 & 2 to Headphone Out No Load: +14 dBV Mic In to Mic Out: +20 dBV Mic In to Talkback Out at 40 dB Gain: +15 dBV |
| Input Impedance | Mic In No Phantom or T Power: 100 kOhms Mic In Phantom Power: 2.8 kOhms Mic In T Power: 4.7 kOhms Input 1 & 2: 10 kOhms |
| Output Impedance | Mic Out: N/A passive Talkback Out: 22 Ohms Headphone Out: 30 Ohms |
| Stereo Separation | Input 1 & 2 to Headphone Out: 76 dB at 1 kHz |
| Phantom Power | Phantom /T power: 10 VDC |
| Impulse Noise When Switching | Mic On/Off: < -118 dBV Mic to Talkback Out at 0 dB Gain: < -113 dBV |
| Attenuation | Attenuation of Cough Button: > 118 dB at 0 dBV level Attenuation of Mic Out when in Talkback: > 118 dB at 0 dBV level Mic Off Attenuation: >118 dB at 0 dBV level |
| Power | Power Requirements: 12 VAC 1000 mA Power Draw At Secondary of 12 VAC Transformer: 0.410 A min to 0.641 A max At 120 VAC Line: 0.058 A min to 0.090 A max |
| Dimensions | 8.0 x 5.0 x 2.5" / 20.3 x 12.7 x 6.4 cm |
| Weight | 2.9 lb / 1.3 kg |
In the Box
- Whirlwind THS 5 Talkback Headphone Box Sports Announcer Console
- Power Adapter
- 3-Year Manufacturer Warranty
