EAN: 814170010352
The JK Audio THAT-2 is a telephone audio interface that connects between the telephone receiver and base. THAT-2 is designed to capture audio to record and play sound bytes or to send IFB dialog over phone lines. The compact telephone tap features balanced and unbalanced XLR and RCA I/O connectors.
The audio connections are used for sending line level signal down phone lines or capturing a mix of send and receive audio. A 3-position switch enables THAT-2 to be used with either a carbon, dynamic or electret style receiver (receivers with keypads are not compatible). Level adjust dials provide control over send and receive levels. THAT-2 is a compact, passive device that requires no external power source.
Convenient Design
THAT-2 is a compact telephone tap that connects between the receiver and base of any standard analog telephone. The tap allows users to send line level feeds down telephone lines or capture send and receive signal for sound byte recording.
Handset Selector
THAT-2 is compatible with dynamic, electret or carbon style receivers (handsets with keypads are not compatible).

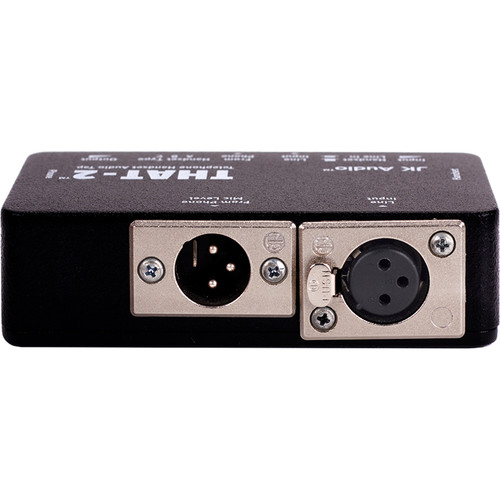

Balanced I/O
A choice of balanced XLR and RCA unbalanced connections allow seamless integration with professional or consumer level audio gear.
JK Audio THAT2 Specs
| Input | Balanced: XLR Female Unbalanced: RCA Phono Jack |
| Output | Balanced: XLR Male Unbalanced: RCA Phono Jack |
| Handset | Compatible with various carbon, dynamic and electret handsets. Not for use with handsets that have keypads |
| Isolation | Isolation 1500V |
| Phone Line | RJ11C |
| Impedance | Line Input: 10k ohms, 250 mV RMS, +12dBM Line Output: 600 ohms, 100 mV RMS, -16dBm |
| Power Requirements | Passive |
| Dimensions | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 0.77 lb |
| Box Dimensions (LxWxH) | 5.75 x 4.4 x 2.25" |
In the Box
- JK Audio THAT-2 Telephone Handset Audio Tap
- 2-Year Manufacturer Warranty
