EAN: 842893120850

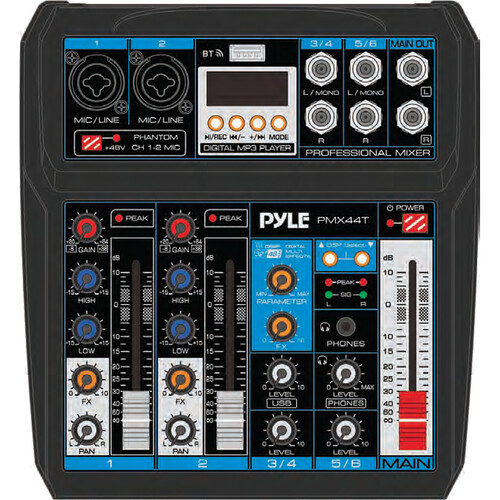

The PMX44T 6-Channel Compact Audio Mixer and USB Interface from Pyle Pro is an intuitive and highly portable audio mixer, designed to provide DJs, musicians, and budding engineers with a versatile solution for outdoor or indoor performing and recording. With connection options for computers, hard drives, wireless Bluetooth devices, dynamic and condenser mics, as well as line input signals, the PMX44T is a flexible mobile mixer at an affordable price.
Six channels with two pairs of stereo RCA inputs, and two XLR-1/4 combo jacks along with 48V phantom power allow for a variety of inputs, from microphones, to instruments, to external tracks, with dedicated 2-band shelving EQ and pan per channel allowing for plenty of efficient control over your input signals. The unit comes with 16 digital FX presets powered by 32-bit / 48 kHz DSP with dedicated FX level control on each channel and smooth faders for channel and master volume. An integrated sound card provides an easy connection to most PCs for recording, and the unit can even be fully powered by the USB bus to a computer or power bank. Wireless Bluetooth support provides further input options, handy for DJ and performance applications. With a light weight of only 1.8 lb, an incredibly easy-to-use interface, and diverse connection options, the Pyle Pro PMX44T can be a useful and cost-effective all-in-one solution for small performances or portable recording.
Features
- Two XLR-1/4 combo inputs with rotary style controls and faders
- Two stereo pairs of RCA line inputs
- Gain, level, FX amount, 2-band shelving EQ, and pan on each input channel
- Balanced 1/4 stereo main outs
- 1/4 headphone out with dedicated volume control
- USB interface with integrated sound card for PC recording and playback support
- USB bus power or 5V power supply
- DSP FX with 16 presets
- Bluetooth wireless input support
- Class-compliant driver installation
Pyle Pro PMX44T Specs
Mixer
| Number of Analog Input Channels | 6 (2 Mono / 2 Stereo) |
| Number of Mic Preamps | 2 |
| Analog Output Channels | 1 x Stereo Master Output 1 x Stereo Headphone Output |
| Max I/O Capacity | 6 x Input / 3 x Output |
| Mix Routing | Stereo Main Mix per Main Mix Channel (LCR Main Mix Combines Stereo and Mono Main Mixes) |
| Faders & Level Adjustment | 2 x Channel Fader 1 x Master Fader |
| Meters | Main Meter: 1 x 2-Segment LED |
Signal Processing
| Gain/Trim Range | Combo XLR-1/4" Line/Mic Input: -6 to +38 dB (Mono Channels) |
| Dynamic Processing | None |
| Sidechain Filters | None |
| EQ | Input Channels: 2-Band Shelving (Mono Channels) |
| EQ Parameters | Mono Channels: High: ±15 dB at 12 kHz (Shelving) Low: ±15 dB at 80 Hz (Shelving) |
| Solo/Mute | None |
| Channel Output/Source Monitoring | AFL, Post-Preamp, Post-EQ, Post-FX |
| Built-In Effects | 16 x Stereo Delay+Reverb |
Digital Audio
| DSP | 32-Bit |
Performance
| Frequency Response | 20 Hz to 20 kHz ±1/4 dBu (at 1 kHz) |
| THD | < 0.5% (+4 dBu) |
Connectivity
| Analog Inputs | 2 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input 4 x 1/4" Coaxial Unbalanced Stereo Input (2 Stereo Pairs) |
| Analog Outputs | 2 x 1/4" TRS Balanced Stereo Main/Monitor Output (1 Stereo Pair, Post-Fader) 1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Headphone Output |
| Phantom Power | +24 V, Selectable On/Off (on 2 Channels) |
| Digital I/O | None |
| MIDI I/O | None |
| USB | 2 x USB-A 2.0 (Audio Playback, Audio Streaming, Device Charging, External Memory, I/O, Recording, Wireless Audio) |
| Bluetooth | Yes |
Recording
| Media Support | HDD, USB Drive |
Compatibility
| OS Compatibility | Windows *As of July, 2022: Check with manufacturer for the most up-to-date compatibility |
Power
| AC Input Power | None |
| DC Input Power | 5 VDC at 1A (USB Bus Power) |
| Power Supply Output | 120 to 240 VAC (Included) |
| Power Consumption | 5 W |
Physical
| Rack Mountable | No |
| Dimensions | 7.1 x 2.4 x 7.7" / 18 x 6.1 x 19.6 cm |
| Weight | 1.8 lb / 0.8 kg |
Packaging Info
| Package Weight | 1.71 lb |
| Box Dimensions (LxWxH) | 9.1 x 8.1 x 3.5" |
In the Box
- Pyle Pro PMX44T 6-Channel Compact Audio Mixer and USB Interface
- Power Adapter
- 2-Year Manufacturer Warranty
