Cloud 46-120 4-Zone 2U Rack-Mountable Mixer Amplifier

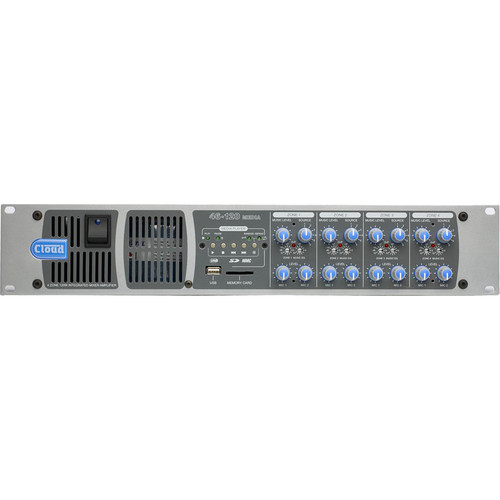

Cloud USA 46-120 4-Zone 2U Rack-Mountable Mixer Amplifier

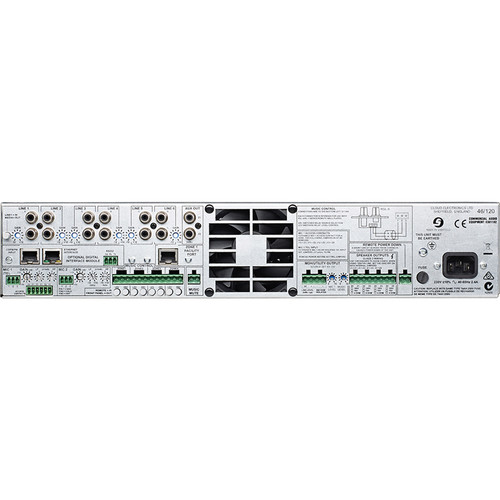

The 46-120 4-Zone 2U Rack-Mountable Mixer Amplifier from Cloud USA combines simple control of background music, microphone paging, and power amplification for up to four zones in a single unit. It is suitable for use in many types of premises, such as pubs, bars, clubs, leisure, and fitness centers, shops, offices, hotels, and more. It has six stereo line inputs and two microphone inputs one mic input can be configured for paging purposes. Each line and mic input has its own preset sensitivity control on the rear panel, and each mic input additionally has HF/LF EQ adjustment to optimize the inputs for better clarity.

The 46-120 has four mono zone outputs, each being driven by a 120W power amplifier stage. Pre-power stage outputs (0 dBu, unbalanced) are also provided for Zones 1 and 2. Line 6 input may be set to have priority over any other selected music source in Zone 1, to facilitate connection of a jukebox, digital sound store, or similar device. The priority feature has selectable release times, to allow a smooth return to the original music source.

A transformer-isolated auxiliary output is also available which may be used as an interface to telephone MOH systems, or as a utility output to drive a local rack monitor or an induction loop amplifier. This output may be selected by internal jumper to either follow Zone 1 s selected music source summed with Mic 1, be permanently fed with any one of the music sources. Separate rear panel preset controls are provided to set the music and Mic 1 levels at this output.

The mixer amplifier is compatible with all Cloud PM Series paging microphones. The paging mic input can be configured to suit most OEM paging systems. Zone selection for paging is via short-to-ground access connections, and the unit may be configured by internal jumper for automatic music ducking (mic-over-music priority), triggered by VOX control. Furthermore, this mixer amplifier features a Facility Port that allows remote input plates of various types (sold separately) to be connected so that mic and/or line sources such as radio mics, DJ mixers, iPods, laptops, or other audio sources can be connected in the zone itself. A remote Music Mute facility is provided, which can be used to satisfy the requirements of the Local Fire Officer.

Compatibility

General

2U 19 rack-mounting unit

Eight input (6 x line, 2 x mic) mixing amplifier for four zones

Provides flexible music, paging, and announcement facilities in each zone

4 x 120W power output (4 Ohms)

Dynamic clip limiting in power amplifier stage

Zones 1 & 2 auxiliary line level outputs (pre-power amplifier), for connection of additional external amplifiers

Transformer-isolated auxiliary output with independent mic and music level control for use with telephone MOH systems

Aux output source selection (internal jumper) fixed source or mix of Mic 1 and Zone 1 music source

Front panel user controls for music source, music level, and level of each microphone, for each zone

Front panel preset controls for HF/LF EQ for each zone output

Six (unbalanced) stereo line inputs with individual gain trim controls

Contact closure access port for paging zone selection

Selectable VOX-triggered mic-over-music priority

Sensitivity and HF/LF EQ adjustment for mic input (rear panel)

Selectable Line 6 priority in Zone 1, with choice of release times

Two balanced mic inputs 15 V phantom power selectable on either or both

MIC 1 input can be configured as telephone system interface

Zone 1 Facility Port for connection of optional LM-1 (mic/line) remote input/control modules via screened Cat5

Facility Port may also be used as additional balanced line input to Zone 1

Selectable 65 Hz high-pass filter per-output (for use with 70V line systems)

Music mute control input (N/O or N/C) for interface to emergency system

EQ cards (sold separately) to suit various popular installation loudspeakers may be fitted in any or all outputs
