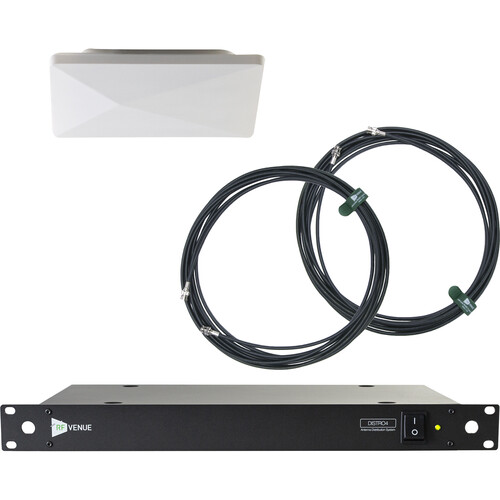

RF Venue Diversity Architectural Antenna for UHF Wireless Microphones (White, 470 to 616 MHz)
EAN: 672975227395
Get better reception from your UHF wireless microphone system with the white RF Venue Diversity Architectural Antenna. This high-performance diversity flood antenna features a slim enclosure designed to be discreetly mounted on a wall or ceiling in your classroom, meeting space, training center, or house of worship. Based on the highly acclaimed Diversity Fin Antenna, the Architectural Antenna s unique shape helps eliminate the most common signal dropouts caused by changes in the angle and orientation of the RF signal.
RF Venue DISTRO4 4-Channel UHF Antenna Distribution System (470 to 952 MHz)
EAN: 718122341313
The DISTRO4 4-Channel UHF Antenna Distribution System from RF Venue is an active antenna splitter designed to split the RF signal from two remotely mounted antennas and distribute it to up to 5 wireless receivers (antennas and receivers available separately). The all-metal, 1-RU rackmount splitter includes 10 BNC cables for splitting the RF signal as well as 4 DC jumpers to provide four wireless receivers with power. The unit s cascade port can be used to connect a fifth receiver (with an external power supply) or additional DISTRO4 units connected to additional receivers.
At a Glance
EAN: 672975227395
Get better reception from your UHF wireless microphone system with the white RF Venue Diversity Architectural Antenna. This high-performance diversity flood antenna features a slim enclosure designed to be discreetly mounted on a wall or ceiling in your classroom, meeting space, training center, or house of worship. Based on the highly acclaimed Diversity Fin Antenna, the Architectural Antenna s unique shape helps eliminate the most common signal dropouts caused by changes in the angle and orientation of the RF signal.
The back plate comes with pre-drilled holes that provide multiple mounting options you then simply attach the front plate using the included mounting screws. Rear-mounted BNC female connectors allow you to connect the antenna to your in-wall or in-ceiling cable run feeding your wireless receiver. The system uses a dual-feed antenna design with both A and B diversity connections provided, eliminating the need for two separate antennas and giving you improved wireless performance with less dropouts in a sleek, low-profile enclosure that complements any decor.
At a Glance
- Improves wireless UHF reception and reduces dropouts for clearer audio
- Wide UHF bandwidth (470 to 616 MHz)
- Two antennas in one space-saving package
- Blends into any background
- Easy, cost-effective installation
- Ceiling and wall mounting kits included
RF Venue DISTRO4 4-Channel UHF Antenna Distribution System (470 to 952 MHz)
EAN: 718122341313
The DISTRO4 4-Channel UHF Antenna Distribution System from RF Venue is an active antenna splitter designed to split the RF signal from two remotely mounted antennas and distribute it to up to 5 wireless receivers (antennas and receivers available separately). The all-metal, 1-RU rackmount splitter includes 10 BNC cables for splitting the RF signal as well as 4 DC jumpers to provide four wireless receivers with power. The unit s cascade port can be used to connect a fifth receiver (with an external power supply) or additional DISTRO4 units connected to additional receivers.
At a Glance
- Reduce IMD and crosstalk while decluttering your rack with regulated 12 VDC power to your receivers
- Routes antenna signals from a pair of diversity antennas to several receivers in a multichannel system
- Compensates for signal strength lost in the splitting process with high-quality amplifiers
- Provides DC powering for up to 4 receivers
- Internal switch applies DC power over coaxial cable to antenna connections
- Features BNC outputs for 4 receivers, plus cascade BNC for a fifth receiver (with external power supply) or additional DISTO4 units and receivers
- Wide UHF bandwidth from 470 to 952 MHz
- Works with any UHF wireless system that supports remote antenna mounting
- 1 RU full-rack width to install near receivers
- 2000mA internal power supply (no wall wart)
RF Venue Diversity Architectural Antenna for UHF Wireless Microphones (White, 470 to 616 MHz) Specs
| Frequency Band | 470 to 616 MHz |
| Bandwidth | 146 MHz |
| Impedance | 50 Ohms |
| Average Return Loss | -6.4 dB |
| Pattern Type | Diversity Flood |
| Gain | 3 dBd |
| Polarization | Linear |
| Connectors | BNC Female |
| Operating Temperature | 14 to 104° F / -10 to 40° C |
| Dimensions | 11 x 11 x 2" / 280 x 280 x 50 mm |
| Weight | 2 lb / 0.9 kg |
Packaging Info
| Package Weight | 2.685 lb |
| Box Dimensions (LxWxH) | 12.4 x 12.2 x 3.5" |
RF Venue DISTRO4 4-Channel UHF Antenna Distribution System (470 to 952 MHz) Specs
General
| Compatibility | Not Specified by Manufacturer |
Power
| Power Source | AC Input (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 60 W |
Physical
| Material of Construction | Metal |
| Cable Length | 14.2" / 36 cm (BNC Jumpers) 24" / 61 cm (DC Jumpers) |
| Dimensions | 18.9 x 9.8 x 1.8" / 480 x 250 x 45 mm |
| Weight | 4.74 lb / 2.15 kg |
Packaging Info
| Package Weight | 8.95 lb |
| Box Dimensions (LxWxH) | 22.1 x 12.9 x 3.6" |
In the Box
- Ceiling Hardware Mounting Kit
- Wall Hardware Mounting Kit
- 2-Year Manufacturer Warranty
- 10 x Coaxial RF Cables
- 4 x DC Power Jumpers
- AC Power Cord
- 2-Year Manufacturer Warranty
- 2 x Coaxial Cables (25`)
