Pyle Pro PDWMU114 Wireless UHF Microphone System with Handheld Mic, Lav Mic, Headset Mic & Plug-In Receiver
EAN: 842893133409
The Pyle Pro PDWMU114 is a wireless UHF microphone system that includes a handheld microphone with a built-in transmitter and a bodypack transmitter with both a headset microphone and a lavalier microphone, allowing the user to choose the most appropriate mic for the application. The system features a single-channel plug-in receiver and is ready for a wide variety of uses including performances, conferences, meetings, lectures, and presentations, allowing talent to roam freely without being encumbered by wires at a distance up to 160 away from the receiver
EAN: 842893133409
The Pyle Pro PDWMU114 is a wireless UHF microphone system that includes a handheld microphone with a built-in transmitter and a bodypack transmitter with both a headset microphone and a lavalier microphone, allowing the user to choose the most appropriate mic for the application. The system features a single-channel plug-in receiver and is ready for a wide variety of uses including performances, conferences, meetings, lectures, and presentations, allowing talent to roam freely without being encumbered by wires at a distance up to 160 away from the receiver
Connect the receiver to a compatible PA speaker, mixer, or similar audio gear using the 1/4 plug. The components are paired at the factory and will automatically sync together on the same UHF frequency to create a wireless operating channel, making the system very easy to use. Both the transmitters are powered by AA batteries while the receiver is powered via its USB port.
Key Features at a Glance
- For home, classroom, office, business, and performance applications
- Single-channel receiver with three microphone choices for presenters and performers
- Includes handheld mic with built-in transmitter and bodypack transmitter with both lavalier mic and headset mic
- UHF narrow-band audio transmitter
- Lightweight and portable transmitters powered via AA batteries
- Integrated antenna for extended wireless range
- Plug-and-play operation
- Audio receiver sports 1/4 plug to connect to wide range of gear including PA speakers, amplifiers, stereos, audio processors, DJ mixers, and more
Pyle Pro PDWMU114 Specs
System
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 8 |
| Included Transmitters | 1 x Bodypack 1 x Handheld |
| Diversity | Non-Diversity |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 160` / 48.8 m |
| Max Transmitters per Band | 1 |
| Built-In Recorder | No |
| Encryption | None |
| Deviation | ±40 kHz |
| Modulation | FM |
| SNR | 105 dB |
| THD | <1 % |
Receiver
| Receiver Type | Plug-In / Portable |
| Antenna | 1 x Flexible Whip, Fixed |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/4" TS Female Unbalanced Output |
| Network I/O | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | None |
| Standalone Audio Interface Capable | No |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 to 15 VDC (Included) |
| AC Input Power | 120 to 220 VAC, 50 / 60 Hz |
| Dimensions | 5.3 x 6.8 x 1.7" / 13.5 x 17.3 x 4.3 cm |
Transmitter
| Transmitter Type | Bodypack |
| RF Output Power | > 10 mW |
| Audio I/O | 1 x 1/8" / 3.5 mm TS Female Unbalanced Input |
| Included Cable Connector | None |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Sync Method | Proprietary |
| Power Requirements | Battery |
| Battery Type | 2 x AA |
| Display & Indicators | 1 x LED (Channel, Power, Sync) |
Microphone
| Microphone Type | Headset |
| Sound Field | Mono |
| Output Connector | 1 x 1/8" / 3.5 mm TS Male Unbalanced |
Transmitter 2
| Transmitter Type | Handheld |
| RF Output Power | > 10 mW |
| Audio I/O | None |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Sync Method | Proprietary |
| Power Requirements | Battery |
| Battery Type | 2 x AA |
| Display & Indicators | 1 x LED (Battery Status, Channel) |
Microphone 2
| Microphone Type | Lavalier |
| Color | Black |
| Sound Field | Mono |
| Output Connectors | 1 x 1/8" / 3.5 mm TS Male Unbalanced |
Packaging Info
| Package Weight | 1.685 lb |
| Box Dimensions (LxWxH) | 11.7 x 8.8 x 2.9" |

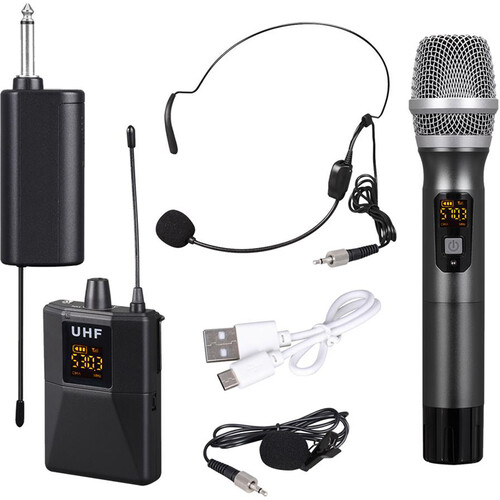

In the Box
- Pyle Pro PDWMU114 Wireless UHF Microphone System with Handheld Mic, Lav Mic, Headset Mic & Plug-In Receiver
- Receiver
- Handheld Microphone/Transmitter
- Bodypack Transmitter
- Lavalier Microphone
- Headset Microphone
- Power Cable
- 2-Year Manufacturer Warranty
