Radial Engineering Reamp Station Studio Reamper and Direct Box

Radial Engineering Reamp Station Studio Reamper and Direct Box

EAN: 676101045372

Combining two-world class studio essentials in one durable chassis, the Reamp Station Studio Reamper and Direct Box from Radial Engineering is designed to deliver pristine, quality DI recording and versatile reamping functionality in one reliable, straightforward box. With an ultracompact form factor and the ability to seamlessly switch between active DI recording and passive reamping, the Reamp Station is engineered to maximize your creativity in the studio.

The numerous I/O connections make it simple to integrate the Reamp Station into any studio workflow and connect to instruments, audio interfaces, mixers, mobile devices, amps, and even further Reamp Stations for massive daisy-chained, multi-amp setups. A class-A buffer circuit keeps your signal tone intact regardless of cable lengths or pedalboard complexity, and a 3-position filter switch gives you instant creative flexibility when feeding your guitar tone for reamping.

Two Studio Essentials in One Box

The Reamp Station combines two highly useful studio assets in one chassis: an active DI box for pristine recordings of any instrument, and a high-performance reamper, based on the JCR Studio Reamper, to feed those recordings to your guitar amps and pedals during mixdown. This 2-in-1 box allows you to streamline your studio recording and mixing workflow and unlock new creative possibilities for your mixes. With the Reamp Station integrated into your studio, you can seamlessly switch between recording and reamping, and with plenty of I/O built in, you can easily connect to any instrument, studio gear, or amp, and even connect to more Reamp Stations for reamping to numerous amps.

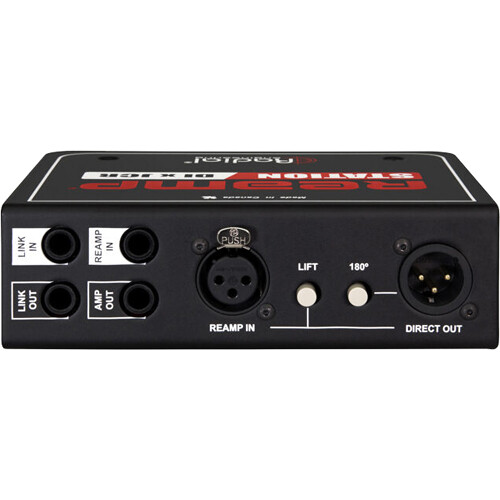

• Features separate DI and reamp circuits: use both or either in any combination
• XLR, 1/4 TRS, and 3.5mm reamp inputs
• XLR and 1/4 outputs including a thru output
• 1/4 link in and out for connecting to further Reamp Stations and bigger setups
• Rack mountable using the optional SA Series rack adapter
• Rugged 14-gauge steel construction for long-lasting reliability

Quality Circuits for Crystal-Clear Sound

Combining circuits from Radial s J48 DI Station and JCR Studio Reamper, the Reamp Station has all the great qualities of these boxes with some tweaks and enhancements. While the reamp portion of the box is passive and can function without power, the DI circuit is active, but can run entirely off of 48V phantom power, commonly provided by most studio mixers or audio interfaces. This makes it easy to keep the Reamp Station close to where it s needed in your signal chain, while avoiding any bulky exterior power supplies.

• Onboard volume control with mute switch
• Class-A unity gain buffer switch for reducing tone loss during long cable runs, complex pedal setups, or when using passive pickups
• Ground-lift switch eliminates ground hum or buzzing
• Phase switch helps avoid any destructive phasing during reamping process
• Three-way filter switch for high-cut, low-cut, or flat response, providing instant creative control over reamping tone
• Pad switch reduces overly hot input signals
• Custom-wound transformer, made in the USA, for ultralow-noise reamping
