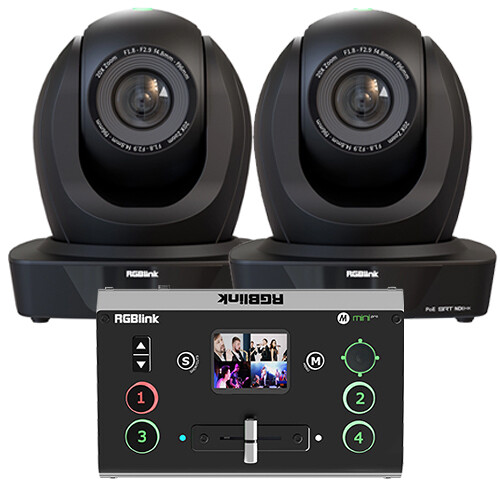

Add a camera to your conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with this black vue HDMI/SDI/IP 1080p PTZ Camera with PoE & 20x Optical Zoom from RGBlink. The PTZ camera features resolutions up to 1080p60, and a 1/2.8 HD CMOS sensor. The built-in zoom lens has an optical zoom range of 20x, and you can zoom in further with the 10x digital zoom. The camera offers multiple video output options including HDMI, 3G-SDI, and RJ45 Ethernet RTSP with simultaneous dual streams.
The camera features 255 programmable preset positions and 10 presets on the included IR remote, you can set the camera to rapidly move between positions using IR control or the IP, RS-232, RS-422/RS-485 connectors with separately available controllers, and it can utilize UVC via its USB-A port for control from a computer. The camera compresses using H.264, or H.265, and you can transmit up to two streams at the same time using RTSP or RTMP protocols. The camera supports external audio input via a 3.5mm stereo line-level jack, and you can power the camera using the included AC adapter or via PoE (Power-over-Ethernet) on a supported network.
Tally Crown
Multi-Protocol Support
Set Presets
Precise Position Control
Remote Control
Power of Convenience
Audio Input
PTZ Park
Browser Config and Preview
Connect directly to a vue camera from any browser without the need to install a dedicated app. The web interface allows full configuration of the camera as well as preview of video, operations, and control.
RGBlink mini-pro 2 Dual Channel Streaming Switcher
Enhance your live streaming presentations with live switching for up to four HDMI video sources with the mini-pro 2 Dual Channel Streaming Switcher from RGBlink. The compact HDMI video switcher handles input resolutions up to DCI 4K60 and can stream up to 1080p60 via one of its two USB-A outputs, with the second USB-A port that can be used for recording externally via an optional portable drive.
Monitor your input sources via the integrated LCD display or use the touch-enabled screen to access specific features and settings. The switcher s dynamic output control enables users to preview multi-view, picture-in-picture (PiP) with pixel-to-pixel scaling, chroma keying, and video transitions, including auto-cut. The unit has an RJ45 connector that provides LAN connectivity for software control, and manual operation includes seamless switching among sources, performing transitions using the integrated T-bar, and controlling PTZ cameras with the on-board joystick. The unit is powered via its USB-C port using the included power adapter and USB-C cable.
Key Features
Four HDMI inputs, one USB-A 3.0 streaming output, one USB-A 2.0 recording output, one HDMI program output
Input up to DCI 4K60 video via HDMI
Seamless switching between inputs
Create effects with transitions when switching between sources
Broadcast-style T-bar
Insert audio via 3.5mm audio input or use HDMI embedded audio
Switch between sources with T-bar or direct touch
Remote control with apps connected via LAN
Add Picture-in-Picture (PiP) presets
Preview all video inputs simultaneously via HDMI monitoring or the LCD color display on the switcher
Stream video up to 1080p60 to popular platforms via USB
Record up to 1080p video to external drive via USB-A output
De-embed and extract audio to speakers or mixer via 3.5mm stereo output
Advanced features for PTZ camera, chroma key, and adding a graphic logo
Support for third party apps, including OBS Studio
RGBlink vue HDMI/SDI/IP 1080p PTZ Camera with PoE & 20x Optical Zoom (Black) Specs
Imaging
| Image Sensor | 1/2.8"-Type CMOS |
| Sensor Resolution | Effective: 2.07 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
Exposure Control
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| White Balance | 3000 to 7000K |
Lens
| Focal Length | 4.8 to 96mm |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 10x |
| Field of View | Horizontal: 60.04 to 3.45° |
| Maximum Aperture | f/1.8 to 2.9 |
Video Capture
| External Recording Modes | SDI/BNC / HDMI / RJ45 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Broadcast Output | |
| IP Streaming | H.264, H.265, RTMP, RTSP 1920 x 1080 1280 x 720 |
| IP Multi-Stream Support | Simultaneous H.264, H.265: 1080p, 720p, 360p |
Control
| Presets | 255 via IR, RS-232, VISCA |
| Move Speed | Pan: 0.1 to 60°/sec Tilt: 0.1 to 30°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | IP IR Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |
Interface
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x RJ45 Output 1 x USB-A 2.0 Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1 x Block 2-Pin (RS-422, RS-485) Input/Output 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output 1 x RJ45 (LAN) Input |
Power
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel (12VDC at 1.5 A) Input |
| Power Consumption | Device: 12 VDC 12 W |
Environmental
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Operating Humidity | 20 to 80% |
General
| Dimensions (W x H x D) | 7.4 x 7.8 x 7.1" / 18.8 x 19.8 x 18 cm |
| Weight | 60.0 oz / 1.7 kg |
Packaging Info
| Package Weight | 6.215 lb |
| Box Dimensions (LxWxH) | 11.1 x 9.9 x 9.5" |
RGBlink mini-pro 2 Dual Channel Streaming Switcher Specs
Processing
| Switching Type | Pushbutton, Software, T-Bar |
| Latency | 4 Frames |
| Processing Resolution | 1080p at 24/25/30/50/60 |
| Color Processing | 4:4:4YUV |
Input
| Number of Video Input Sources | 4 |
| Video Inputs | 4 x HDMI (2.0) Female |
| Input Video Format | HDMI DCI 4K at 60 fps UHD 4K at 60 fps 1080p at 23.98/24/30/50/60 fps 1080i at 50 fps 720p at 50/60 fps WUXGA (1920 x 1200) at 60 fps WUXGA+ (1680 x 1050) at 60 fps UXGA (1600 x 1200) at 60 fps WXGA+ (1440 x 900) at 60 fps FWXGA (1366 x 768) at 60 fps SXVGA (1280 x 1024) at 60 fps WXGA (1280 x 800) at 60 fps XGA (1024 x 768) at 60 fps |
| Audio Inputs | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog LPCM (Linear Pulse-Code Modulation) |
| Embedded Audio Input | HDMI |
Output
| Video Output Channels | 2 |
| Video Outputs | 1 x HDMI (2.0) Female |
| Output Video Format | HDMI 1080p at 24/25/30/50/60 fps 720p at 50/60 fps UXGA (1600 x 1200) at 60 fps FWXGA (1366 x 768) at 60 fps SXGA (1280 x 1024) at 60 fps XGA (1024 x 768) at 60 fps USB-A 1080p at 24/25/30/50/60 fps FWXGA (1366 x 768) 60 fps SXGA (1280 x 1024) 60 fps XGA (1024 x 768) 60 fps |
| Audio Outputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Output Audio Format | Analog |
| Embedded Audio Output | HDMI USB-A |
| Multiview Output | 4-Way Multiview viaHDMI |
| Monitor Output | 1 x HDMI |
Connectivity
| Other I/O | 2 x USB-A 3.0 / 3.1/3.2 Gen 1 Output 1 x RJ45 Control, LAN Input/Output |
| HDCP Support | , Version 2.2 |
| Recording Media | 1 x USB-A 3.0 / 3.1/3.2 Gen 1 (External Drives) |
| Recording Modes | 1920 x 1080p at 24/25/29.97/30/50/60 fps (MP4 via H.265/HEVC) |
Display
| Display Size | 2" |
Hardware
| Wi-Fi | None |
| Bluetooth | None |
| Power I/O | 1 x USB-C (12 VDC at 1.5 A) Input |
| Power Consumption | Device: 20 W |
Environmental
| Operating Temperature | 32 to 140°F / 0 to 60°C |
| Operating Humidity | 10 to 85% |
General
| Effect Types | 1 x Graphic, Transition, Chroma Key |
| Certifications | CE, FCC, RoHS *as per Manufacturer |
| Dimensions | 7.1 x 4.6 x 2.3" / 18 x 11.8 x 5.8 cm |
| Weight | 0.9 lb / 420 g |
Packaging Info
| Package Weight | 2.24 lb |
| Box Dimensions (LxWxH) | 10 x 6.5 x 3.5" |
In the Box
- IR Remote Control
- Power Adapter
- RS-232 Cable
- 2-Year Manufacturer Warranty
- Power Adapter
- USB-C Cable
- USB 3.0 Cable
- Audio Cable (1 x 3.5mm Male to 2 x 3.5mm Female)
- 2-Year Manufacturer Warranty
- 2 x Cat 6 LAN Cable
- Metal Stand
- Hard Carrying Case
