The EZ-1 30 to 90mm Cinema Lens Pack from Angenieux includes the PL mount version of of the 30 to 90mm EZ-1 zoom lens, with both the Super35 and FF/VistaVision rear lens-groups. The lens is fast, T2.0 in Super35 and T3.0 in full-frame/VistaVision. Swapping between the rear lens groups doesn't affect the physical length of the lens, minimum focus distance, or 3x zoom ratio. However, the full-frame rear lens group does change the lens from a 30 to 90mm zoom that covers Super35 to a 45 to 135mm zoom that covers the full-frame/VistaVision aperture.
The lens itself has 3 manual lens control rings: focus, iris, and zoom. Each ring features cine-style 0.8 MOD gear teeth, for compatibility with follow focus units and lens control motors. The 114mm front diameter allows you to work with a wide variety of rod supported matte boxes.

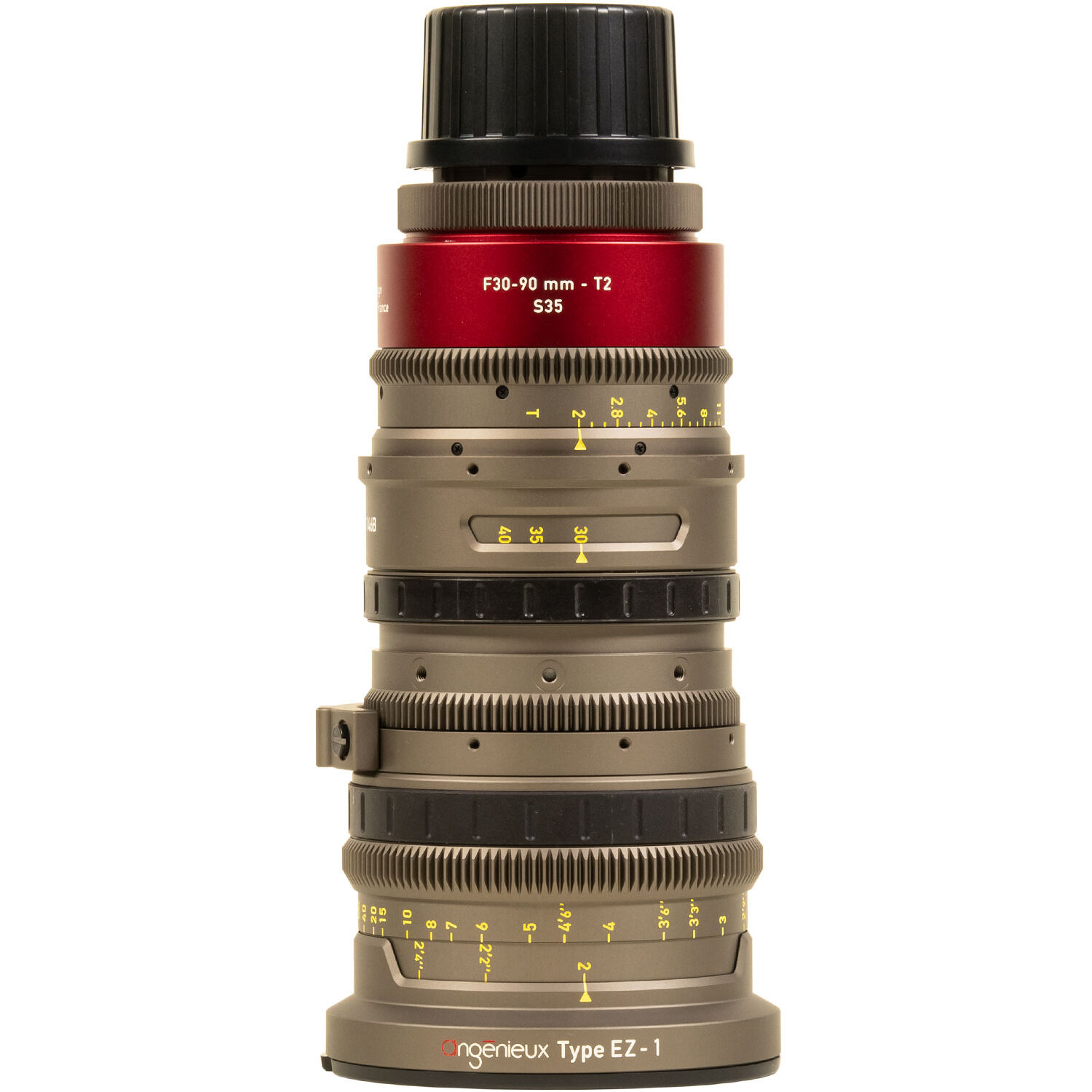

Angenieux EZ-1 30-90mm S35 Cinema Lens with PL Mount
Angenieux's EZ-1 30-90mm S35 Cinema Lens with PL Mount is a fast zoom for 3-perf Super 35mm sized sensors. This version of the lens ships with a PL mount and the Super 35 rear optical assembly. Optional lens mounts allow you to swap the lens mount from PL to Sony E or Canon EF. It features a T2.0 aperture and focuses down to 2' in front of the image plane while weighing in at only 4.7 pounds. The 114mm front diameter of the lens is a common diameter compatible with cinema-style matte boxes. The lens features independent focus, iris, and zoom control rings with cinema standard gear teeth. A removable support foot can be repositioned for when you need to rotate your lens off of a standard mounting orientation.
Interchangeable Lens Mounts
This lens ships with a PL mount however, that mount can be swapped with available (not included) E or EF lens mounts.
Losing only 1/10 of a stop within the lens, the EZ-1 is extremely efficient. The fast T2.0 maximum aperture in Super 35mm matches the maximum aperture of many standard prime lenses for Super 35mm. This allows you to light to a lower illumination level than would normally be required for many zooms, making for more consistent images as you may not have to relight the scene as is often the case when moving from primes to slower zoom lenses.
Manual Lens Control Rings
Featuring independent manual control rings for focus, iris, and zoom. Each control ring incorporates industry standard 0.8 lens gear teeth.
114mm Front Diameter
The EZ-1 shares the same 114mm front common to the Angenieux OPTIMO lens series, allowing you to easily share matte boxes between the EZ-1 and the OPTIMO lenses.
Temperature Stability
The EZ series of lenses are designed and built to compensate for temperature drifts, which helps reduce the need to recollimate the lens.
Angenieux EZ-1 Zoom Full-Frame Rear Lens-Group
The EZ-1 Zoom Full-Frame Rear Lens-Group from Angenieux converts the Angenieux EZ-1 PL-mount zoom lens for use with full frame or VistaVison cameras. This rear-element group converts the Angenieux EZ-1 Zoom's focal length from 30-90mm to 45-135mm. The aperture of the lens changes from T2.0 (f/1.9) to T3.0 (f/2.8).
