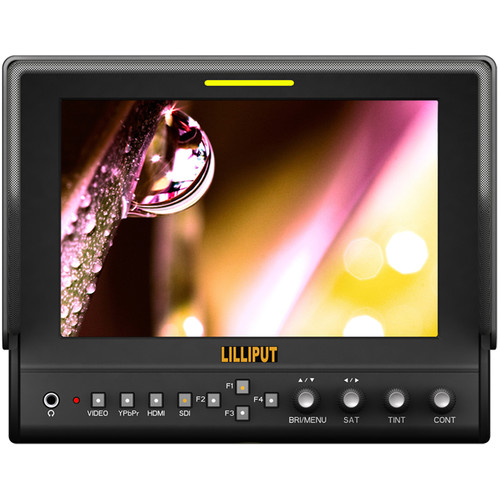

Lilliput 663/O 7 Camera-Top Monitor
The 663/O 7 Camera-Top Monitor from Lilliput is an on-camera monitor offering 1280 x 800 resolution with 400 nit brightness and an 800:1 contrast ratio. The 800:1 contrast ratio produces colors that are vivid, rich, and accurate. This monitor also includes a HDMI-output feature which allows you to duplicate the video content onto a second monitor.
7 Monitor with Wide Screen Aspect Ratio
The Lilliput 663/O monitor has a 1280 A— 800 resolution, 7 IPS panel which is the perfect combination. It also fits neatly in a camera bag
Optimized for DSLR Cameras
Compact size and peaking functionality are the perfect complements for your DSLR camera s features
Foldable Sun Hood Becomes Screen Protector
The 663/O s smart screen protector folds out to become a sun hood. This solution provides protection for the LCD and saves space in your camera bag
HDMI Video Output
663/O includes an HDMI-output feature which allows you to duplicate the video content onto a second monitor without the need for additional HDMI splitters. The second monitor can be of any size and picture quality will not be affected
High Resolution
The Lilliput 663/O monitor uses LED-backlit display IPS panels that feature higher physical resolutions. This provides higher levels of detail and image accuracy
High Contrast Ratio
The 800:1 contrast ratio produces colors that are vivid, rich, and accurate
Configurable to Suit your Style
You can customize the 4 programmable function buttons (namely F1, F2, F3, F4) for shortcut operation according to different needs
Wide Viewing Angles
With a 178° viewing angle both vertically and horizontally, you can get the same vivid picture from wherever you are standing
The 663/O 7 Camera-Top Monitor from Lilliput is an on-camera monitor offering 1280 x 800 resolution with 400 nit brightness and an 800:1 contrast ratio. The 800:1 contrast ratio produces colors that are vivid, rich, and accurate. This monitor also includes a HDMI-output feature which allows you to duplicate the video content onto a second monitor.
7 Monitor with Wide Screen Aspect Ratio
The Lilliput 663/O monitor has a 1280 A— 800 resolution, 7 IPS panel which is the perfect combination. It also fits neatly in a camera bag
Optimized for DSLR Cameras
Compact size and peaking functionality are the perfect complements for your DSLR camera s features
Foldable Sun Hood Becomes Screen Protector
The 663/O s smart screen protector folds out to become a sun hood. This solution provides protection for the LCD and saves space in your camera bag
HDMI Video Output
663/O includes an HDMI-output feature which allows you to duplicate the video content onto a second monitor without the need for additional HDMI splitters. The second monitor can be of any size and picture quality will not be affected
High Resolution
The Lilliput 663/O monitor uses LED-backlit display IPS panels that feature higher physical resolutions. This provides higher levels of detail and image accuracy
High Contrast Ratio
The 800:1 contrast ratio produces colors that are vivid, rich, and accurate
Configurable to Suit your Style
You can customize the 4 programmable function buttons (namely F1, F2, F3, F4) for shortcut operation according to different needs
Wide Viewing Angles
With a 178° viewing angle both vertically and horizontally, you can get the same vivid picture from wherever you are standing
Lilliput 663 Specs
| LCD Size | 7.0" (17.8 cm) |
| Display Resolution | 1280 × 800 |
| Active Area | H x V: 5.9 x 3.7" (149.76 x 93.6 mm) |
| Dot Pitch | H x V: 0.117 x 0.117 mm |
| Aspect Ratio | 16:10 |
| Brightness | 400 cd/m² |
| Contrast Ratio | 800:1 |
| Light Source | LED |
| Surface Treatment | 3H |
| Response Time | Typical: Tr: 14 ms, Tf: 11 ms Maximum: Tr: 17 ms, Tf: 14 ms |
| View Angle | 89/89° (Left/Right) and 89/89° (Up/Down) |
| Input Connector | 1 x HDMI 1 x YPbPr 1 x Composite 1 x Tally 1 x Audio L&R |
| Output Connector | 1 x HDMI |
| Power | 7 to 24 VDC (XLR connector) |
| Power Consumption | ‰¤10 W |
| Control | Basic: Video, YPbPr, power, HDMI buttons, SDI (no use), F1-F4 F1-F4 user-definable buttons, BRI/Menu knob, SAT knob, TINT knob, CONT knob Advanced: Brightness, contrast, saturation, sharpness, color temperature, center marker, screen markers, aspect ratio, H/V delay, check field, pixel-to-pixel, underscan, zoom, image flip, freeze input, PIP, camera, volume, language, input format OSD, logo, manufacturer default, back light, IPS |
| Speaker | Built-in 1 W |
| Menu Language | English / Chinese |
| Operation Temperature | -4 to 140°F (-20 to +60°C) At High Temperature: 140°F (60°C) |
| Operating Humidity | 80% RH maximum |
| Storage Temperature | -22 to 158°F (-30 to 70°C) |
| Dimensions | With Cover: 7.5 x 6.0 x 5.6" (19.1 x 15.2 x 14.1 cm) Without Cover: 7.5 x 6.0 x 1.2" (19.1 x 15.2 x 3.1 cm) |
| Weight | With Cover: 33.1 oz (938 g) Without Cover: 26.8 oz (760 g) With Suitcase: 76.2 oz (2.1 kg) |
In the Box
- Lilliput 663/O 7" Camera-Top Monitor
- Sun Shade
- F-970 Battery Plate
- LP-E6 Battery Plate
- HDMI A/C cable
- Power & Tally
- Shoe Mount
- 12 VDC Adapter
- Suitcase
- Adapter Panel
- 2 Years Manufacturer Warranty
