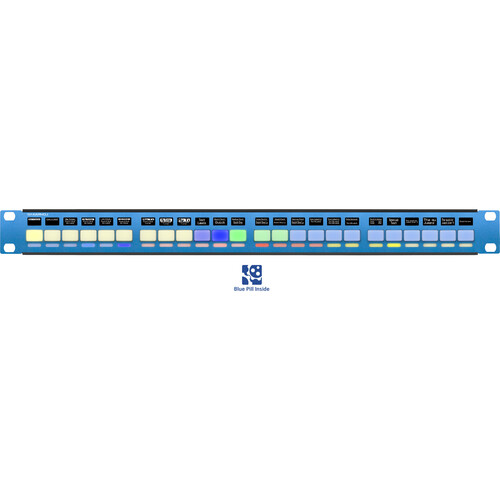

SKAARHOJ Rack Fly Uno Universal Control Panel with Blue Pill Inside
Whether you re looking to control a video router, a VSM system, or an AUX bus, the Rack Fly Uno from SKAARHOJ has you covered. This universal control panel provides 24 programmable four-way RGB buttons, each with its own OLED display and RGB multilevel metering LED bar. The Rack Fly Uno runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable. Hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel.
24 programmable four-way buttons with OLED displays
24 RGB multilevel metering LED bars
Compact form factor
For rackmount or desktop use
Ethernet with PoE IEEE802.3af
skaarOS
Works with a wide variety of devices including AJA KUMO, Atomos Shogun, Ensemble Designs NXT 450, Epiphan Pearl, NewTek TriCaster, Sony Deck Ctrl, vMix, and Blackmagic Design ATEM, Cam Ctrl, HyperDeck Studio, MultiView, SmartScope, and Videohub
Whether you re looking to control a video router, a VSM system, or an AUX bus, the Rack Fly Uno from SKAARHOJ has you covered. This universal control panel provides 24 programmable four-way RGB buttons, each with its own OLED display and RGB multilevel metering LED bar. The Rack Fly Uno runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable. Hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel.
24 programmable four-way buttons with OLED displays
24 RGB multilevel metering LED bars
Compact form factor
For rackmount or desktop use
Ethernet with PoE IEEE802.3af
skaarOS
Works with a wide variety of devices including AJA KUMO, Atomos Shogun, Ensemble Designs NXT 450, Epiphan Pearl, NewTek TriCaster, Sony Deck Ctrl, vMix, and Blackmagic Design ATEM, Cam Ctrl, HyperDeck Studio, MultiView, SmartScope, and Videohub
SKAARHOJ RACK-FLY-UNO Specs
| Controls and Indicators | 24 x 4-Way Buttons with OLED Displays 24 x RGB Multilevel Metering LED Bars |
| Connectors | 1 x RJ45, Ethernet 1 x Micro-USB, Programming 1 x DC Power Input |
| Power Source | PoE IEEE802.3af, DC |
| Operating System | UniSketch |
| Dimensions | 20.1 x 6.3 x 6.3 oz / 51 x 16 x 16 cm |
| Weight | 47.6 oz / 1350 g |
In the Box
- SKAARHOJ Rack Fly Uno Universal Control Panel with Blue Pill Inside
- 12V Power Supply (4.9`)
- 2-Year Manufacturer Warranty
