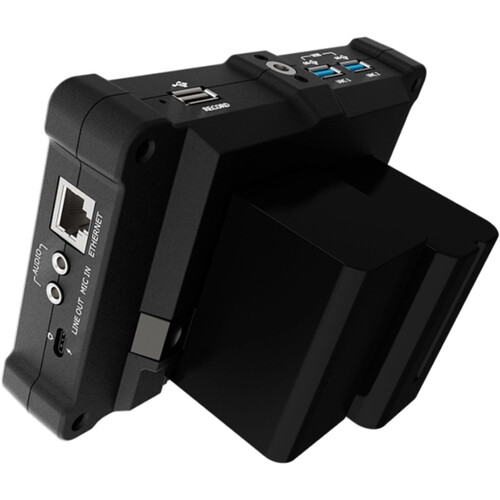

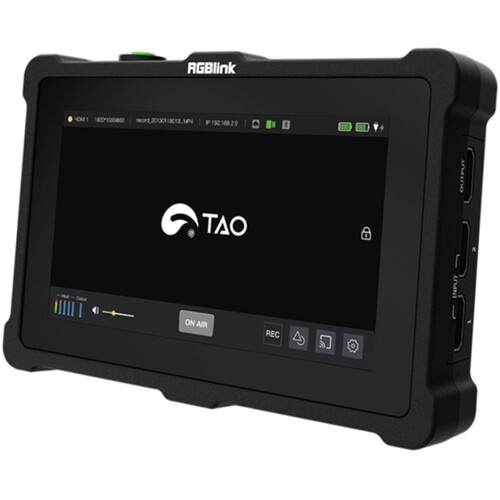

RGBlink TAO 1pro HDMI/USB/NDI Video Switcher
Switch, stream, and record HD video for live broadcasts with the TAO 1pro HDMI/USB/NDI Video Switcher from RGBlink. This portable livestreaming switcher features two HDMI 1.3 and two USB 3.0 inputs for a variety of cameras up to 1080p60 resolution, an HDMI 2.0 monitor output, and the RJ45 Ethernet port lets you simultaneously stream to up to four streaming platforms, such as OBS and YouTube Live. It also features an NDI 5.0 encoder, so you can stream high-quality video with up to UHD 4K60 resolution on an NDI network. A USB 2.0 Type-A output is also included to record your program onto a separately available USB drive.
You can monitor and switch all four inputs via the built-in 5.5 1920 x 1080 touchscreen TFT LCD screen. You can also connect to RGBlink Bluetooth-enabled PTZ cameras for control using a Bluetooth controller. You can also utilize 3.5mm audio input and output ports to embed an independent mic signal and extract HDMI audio to external speakers or an audio mixer. The switcher is powered using the included USB Type-C cable and power adapter or with an optional L-series battery using the built-in plate. A 1/4 -20 screw adapter allows you to mount the switch.
Key Features
5.5 1920 x 1080 touchscreen operation
Seamless switching
NDI 5.0 encoder
Multistream to up to four live streaming platforms simultaneously
Two USB Type-A UVC inputs, two HDMI 1.3 inputs, and one HDMI 2.0 output
Recording via USB 2.0 port for mobile hard disk stores up to 2TB
L-series battery plate
Bluetooth 5.0 support for control of Bluetooth-enabled RGBlink PTZ cameras
Image tools such as oscilloscope, vectorscope, and histogram
Switch, stream, and record HD video for live broadcasts with the TAO 1pro HDMI/USB/NDI Video Switcher from RGBlink. This portable livestreaming switcher features two HDMI 1.3 and two USB 3.0 inputs for a variety of cameras up to 1080p60 resolution, an HDMI 2.0 monitor output, and the RJ45 Ethernet port lets you simultaneously stream to up to four streaming platforms, such as OBS and YouTube Live. It also features an NDI 5.0 encoder, so you can stream high-quality video with up to UHD 4K60 resolution on an NDI network. A USB 2.0 Type-A output is also included to record your program onto a separately available USB drive.
You can monitor and switch all four inputs via the built-in 5.5 1920 x 1080 touchscreen TFT LCD screen. You can also connect to RGBlink Bluetooth-enabled PTZ cameras for control using a Bluetooth controller. You can also utilize 3.5mm audio input and output ports to embed an independent mic signal and extract HDMI audio to external speakers or an audio mixer. The switcher is powered using the included USB Type-C cable and power adapter or with an optional L-series battery using the built-in plate. A 1/4 -20 screw adapter allows you to mount the switch.
Key Features
5.5 1920 x 1080 touchscreen operation
Seamless switching
NDI 5.0 encoder
Multistream to up to four live streaming platforms simultaneously
Two USB Type-A UVC inputs, two HDMI 1.3 inputs, and one HDMI 2.0 output
Recording via USB 2.0 port for mobile hard disk stores up to 2TB
L-series battery plate
Bluetooth 5.0 support for control of Bluetooth-enabled RGBlink PTZ cameras
Image tools such as oscilloscope, vectorscope, and histogram
RGBlink TAO 1pro Specs
Processing
| Switching Type | Pushbutton, Software |
Input
| Video Inputs | 2 x HDMI (HDMI 1.3) Female 2 x USB-A |
| Input Video Format | HDMI 1080p at 23.98/24/60 fps 720p 50/60 fps WUXGA+ (1680 x 1050) 60 fps UXGA (1600 x 1200) 60 fps 1360 x 768 60 fps SXVGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps XGA (1024 x 768) 60 fps |
| Audio Inputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Embedded Audio Input | HDMI |
Output
| Video Outputs | 1 x HDMI (HDMI 2.0) Female 1 x USB-A (USB Video) Female 1 x RJ45 (NDI) Female |
| Output Video Format | HDMI / RJ45 / USB-A UHD 4K at 60 fps 1080p 24/25/50/60 fps 720p 50/60 fps 1360 x 768 60 fps SXGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps XGA (1024 x 768) 60 fps |
| Audio Outputs | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Output Audio Format | Analog |
| Embedded Audio Output | HDMI USB-A |
Display
| Display Size | 5.5" |
| Screen Resolution | 1920 x 1080 |
Hardware
| Wi-Fi | None |
| Bluetooth | 5.0 |
Power
| Power I/O | 1 x USB-C (9 VDC at 2 A) Input |
| Power Consumption | Device: 18 W |
Environmental
| Operating Temperature | 32 to 131°F / 0 to 55°C |
| Operating Humidity | 5 to 85% |
General
| Dimensions | 6.3 x 4.2 x 1.4" / 161 x 106 x 36 mm |
| Weight | 12.3 oz / 350 g |
Packaging Info
| Package Weight | 1.98 lb |
| Box Dimensions (LxWxH) | 10.6 x 5.8 x 3.5" |
In the Box
- RGBlink TAO 1pro HDMI/USB/NDI Video Switcher
- Power Adapter
- USB 3.0 Type-A Cable
- 2-Year Manufacturer Warranty
