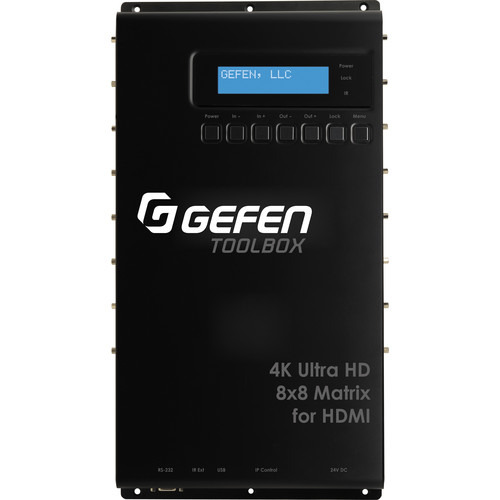

Gefen ToolBox 8x8 4K HDMI Matrix Switcher
EAN: 888814217599
The Gefen ToolBox 8x8 Matrix Switcher is a compact and lightweight alternative to rack-mounted matrix switchers. This HDCP 1.4 compliant matrix switcher routes eight Ultra HD sources to any eight 4K Ultra HD displays with HDMI inputs. Resolutions up to 4K DCI (4096 x 2160 at 24 Hz), 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), 1080p Full HD, and 1920 x 1200 WUXGA are supported. 3D, Deep Color, and multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) formats such as DolbyA®TrueHD, and DTS-HD Master Audio are also passed through. The Gefen Syner-G software s Discovery and Show-Me features simplify initial IP configuration of the ToolBox. Each source can be routed to any display location, using the front-panel push buttons or the included handheld IR Remote Control. The matrix can also be controlled via RS-232, Telnet, UDP, and web server interface. An easy-to-read backlit front panel display indicates the current routing status and IP settings.
EAN: 888814217599
The Gefen ToolBox 8x8 Matrix Switcher is a compact and lightweight alternative to rack-mounted matrix switchers. This HDCP 1.4 compliant matrix switcher routes eight Ultra HD sources to any eight 4K Ultra HD displays with HDMI inputs. Resolutions up to 4K DCI (4096 x 2160 at 24 Hz), 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), 1080p Full HD, and 1920 x 1200 WUXGA are supported. 3D, Deep Color, and multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) formats such as DolbyA®TrueHD, and DTS-HD Master Audio are also passed through. The Gefen Syner-G software s Discovery and Show-Me features simplify initial IP configuration of the ToolBox. Each source can be routed to any display location, using the front-panel push buttons or the included handheld IR Remote Control. The matrix can also be controlled via RS-232, Telnet, UDP, and web server interface. An easy-to-read backlit front panel display indicates the current routing status and IP settings.
Gefen GTB-HD4K2K Specs
| Supported Resolutions | 4K DCI (4096 x 2160 at 24 Hz) 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space) 1080p Full HD 1920x1200 WUXGA |
| HDCP | v1.4 Compliant |
| Deep Color | Supports 12-bit Deep Color (up to 1080p) |
| EDID | Advanced EDID management |
| Audio Support | LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio |
| Maximum Pixel Clock | 300 MHz |
| Ports and Connectors | 8 x Locking HDMI Type A female inputs 8 x Locking HDMI Type A female outputs 1 x USB mini-B 1 x RS-232 1 x RJ-45 Ethernet 1 x 4-pin DC power connector |
| LED Indicator: | 1 x Red/Green power indicator 1 x Orange lock indicator |
| Display Type | 2 x 16-Character rows |
| Control Buttons | 7 x tact type |
| IR Sensor | 1 x front panel sensor 1 x 3.5mm mini stereo extender port |
| Power Supply | 24 VDC |
| Power Consumption | 27 W Maximum |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 5 to 90% RH (non-condensing) |
| Storage Humidity | 5 to 95% RH (non-condensing) |
| Dimensions | 9.3 x 17.9 x 1.75" / 236 x 454 x 44 mm |
| Weight | 3.9 lb / 1.8 kg |
In the Box
- Gefen ToolBox 8x8 4K HDMI Matrix Switcher
- IR Remote
- 24 V DC Power Supply
- AC Power Cord
- 2-Year Manufacturer Warranty
