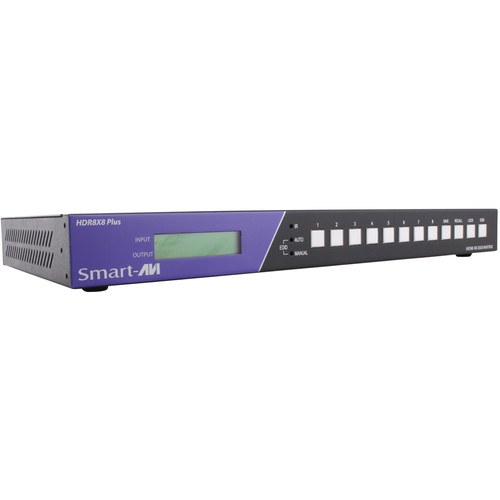

Smart-AVI HDR-8X8-PLUS-S 4K 8x8 HDMI Matrix Switch with IR Remote
EAN: 813280015509
The HDR-8X8-PLUS-S 4K 8x8 HDMI Matrix Switch with IR Remote from Smart-AVI has eight sources distributing to eight outputs. This offers the flexibility of sending HD video and audio signals across multiple displays, eliminating the tedium of disconnecting and reconnecting HDMI cables to a single display. Controlling the matrix switch is simple with the front-panel buttons, the included infrared remote control, and the RS-232 port. The TCP/IP controls can also be used to manage the unit from a web browser.
Supports 4K input/output (3840 x 2160 @ 30 Hz)
Non-blocking 8x8 HDMI matrix switch
Distribute any eight inputs to any eight HDMI output displays
EDID learning mode
Includes IR remote
Supports RS-232 control
HDCP and HDMI 1.4 compliant
SmartAVI PC software
Integrated TCP/IP controller
Ideal for use with digital media at airports, dealer rooms, control rooms, audio/visual presentations, shopping centers, wall displays, and security
EAN: 813280015509
The HDR-8X8-PLUS-S 4K 8x8 HDMI Matrix Switch with IR Remote from Smart-AVI has eight sources distributing to eight outputs. This offers the flexibility of sending HD video and audio signals across multiple displays, eliminating the tedium of disconnecting and reconnecting HDMI cables to a single display. Controlling the matrix switch is simple with the front-panel buttons, the included infrared remote control, and the RS-232 port. The TCP/IP controls can also be used to manage the unit from a web browser.
Supports 4K input/output (3840 x 2160 @ 30 Hz)
Non-blocking 8x8 HDMI matrix switch
Distribute any eight inputs to any eight HDMI output displays
EDID learning mode
Includes IR remote
Supports RS-232 control
HDCP and HDMI 1.4 compliant
SmartAVI PC software
Integrated TCP/IP controller
Ideal for use with digital media at airports, dealer rooms, control rooms, audio/visual presentations, shopping centers, wall displays, and security
Smart-AVI 8X8-PLUS-S Specs
Video
| Format | HDMI 1.4 |
| DVI Compliance | Single-link DVI-D 1.1 with adapter |
| HDCP Compliance | 1.0 / 1.1 |
| Video Bandwidth | Single-link 340 MHz (10.2 Gb/s) |
| Resolution | Up to 3840 x 2160 @ 30 Hz |
| Input Interface | 8 x HDMI (7.1 Channel audio & video) |
| Output Interface | 8 x HDMI (7.1 Channel audio and video) |
| Connector | 1 x HDMI Type A, female |
| Maximum Cable Length | 20` (6.1 m) |
In the Box
- Smart-AVI HDR-8X8-PLUS-S 4K 8x8 HDMI Matrix Switch with IR Remote
- 12 VDC 4A Power Supply
- 2 Years Manufacturer Warranty
