Matrox Maevex H.264 Encoder & Decoder
EAN: 790750225784

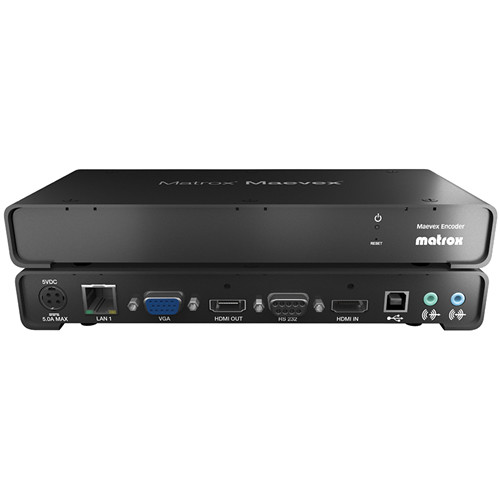

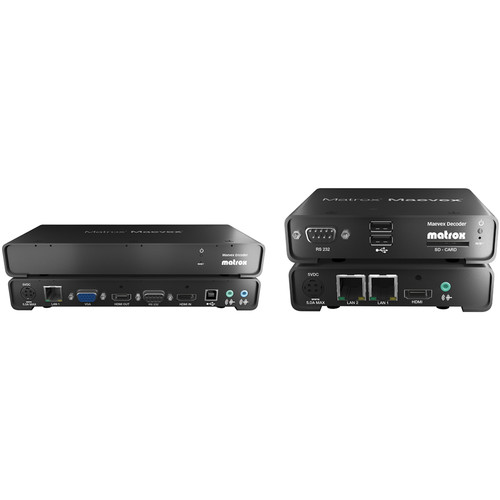

The Matrox Maevex Encoder & Decoder solution, consisting of a Maevex 5100 Series Encoder and Decoder, allows you to extend or record up to 1080p60 video and audio over a standard IP network at user-defined low bit rates. The Maevex Encoder streams or records high-quality video and audio and uses the H.264 video compression standard. It can stream to Maevex Decoders or any device or PC that supports the required network protocols. It can also record to a shared network or NAS drive.
Matrox`s PowerStream software is included and is used to remotely discover, manage, and adjust the Maevex network as well as let administrators define multiple stream parameters and balance network bandwidth consumption and quality. The Maevex API is also available to enable programmers to integrate current features into existing applications or create new, independent PowerStream-like software to meet specific needs.
Encoding
Recording
Network Management
Failsafe
Maevex API
PowerStream Control Software
Other Features
EAN: 790750225784
The Matrox Maevex Encoder & Decoder solution, consisting of a Maevex 5100 Series Encoder and Decoder, allows you to extend or record up to 1080p60 video and audio over a standard IP network at user-defined low bit rates. The Maevex Encoder streams or records high-quality video and audio and uses the H.264 video compression standard. It can stream to Maevex Decoders or any device or PC that supports the required network protocols. It can also record to a shared network or NAS drive.
Matrox`s PowerStream software is included and is used to remotely discover, manage, and adjust the Maevex network as well as let administrators define multiple stream parameters and balance network bandwidth consumption and quality. The Maevex API is also available to enable programmers to integrate current features into existing applications or create new, independent PowerStream-like software to meet specific needs.
Encoding
- Extend/record up to Full HD 1080p60 and 1920x1200 video and audio
- H.264 compression for high-quality, low-bandwidth AV-over-IP
- Support for wide-screen and standard aspect ratios and many resolutions
- Scale streams before distribution for lower bandwidth consumption
- HDMI or analog audio support
- Open encoding allows for third-party software decode (e.g. VLC)
Recording
- Record up to 1080p60/1920x1200 to NAS or shared network drive
- Control frequency and duration of recording
- Schedule the start time and date of recording sessions
- Recorded user-defined file name includes timestamp for easy file management
Network Management
- Operates on standard 100/1000 Mb Ethernet networks
- Auto-detect and discover Maevex units on subnet (DHCP server required)
- Full/half-duplex mode and static IP address support
- CBR, VBR support
- Network bit-rate control (100 Kbps - 25 Mbps)
Failsafe
- Play back pre-recorded content at the decoder in case of a network or streaming disruption
- Programmable time delay before failsafe activates
Maevex API
- Integrate Maevex features in existing or new control software
- Based on easy-to-use .NET programming language
- Provided to select developers (determined on case-by-case basis; NDA may be required)
PowerStream Control Software
- Remotely manage Maevex network from different locations
- Conveniently access IP address, bit rate, and other vitals
- Fine-tune encode/decode parameters and adjust bit rates
- Scale and crop content to fit different outputs
Other Features
- Daisy-chain decoders and extend network via integrated network switch
- Failure resilience - power, network, and device auto-recovery features
- Full duplex RS-232 control
- Reliable, solid-state, energy-efficient design
- Local real-time pass-through and confidence preview on encoder
- PowerStream-controlled user access from secured PC
- Detailed LED indicators for easy and effective troubleshooting
- Customizable bitmap for encoder/decoder splash screen
Matrox MVX-ED5150F Specs
Video Input | Encoder: HDMI with digital L-PCM audio |
Video Output | Encoder: HDMI with digital L-PCM audio HD15, Analog VGA ProCamp control: contrast, brightness, saturation, hue Scaled output (i.e., 1080p60 input/720p60 scaled output) Decoder: HDMI with digital L-PCM audio ProcAmp control: contrast, brightness, saturation, hue Destination cropping support Independent failsafe output |
Audio Line In | Encoder: 3.5 mm analog stereo audio |
Audio Line Out | Encoder: 3.5 mm analog stereo audio Decoder: 3.5 mm analog stereo audio |
Network Connection | Encoder: RJ45 Decoder: 2x RJ45 (fully switched) |
Supported Input / Output Resolutions | Up to 1920x1080p60 and 1920x1200 (60 Hz) |
Video Encoding / Decoding | Single-Channel HD: Up to 1920x1080p60 and 1920x1200(56Hz) Compression Standard: H.264/MPEG4 Part 10 (AVC) Profiles: Baseline, Main, High Levels: Up to 4.2 Bit Rates: 100 Kbps to 25 Mbps Rate Control: CBR, VBR, Favor Speed, Favor Quality, Adjustable GOP (Group Of Pictures) Size |
Audio Encoding / Decoding | Compression Standard: MPEG4 AAC-LC Channels: 2 channel (stereo), HDMI with digital L-PCM audio Analog Sample Frequency: 32, 44.1, and 48 kHz Bit Rates: 96, 128, 192, and 256 Kbps |
Networking Interface | 100/1000base-T Ethernet: 1000 Mbps full duplex, 100 Mbps half/full duplex Streaming Protocols: RTSP/RTP/RTCP (all required) over UDP Command & Control Protocols: HTTP/HTTPS IPV4 Support Unicast, Multicast, and Multi Unicast DHCP (Default) / Fixed IP Address support CAT5-or-higher network cable support |
OS Support | Windows 8 (32-bit, 64-bit) Windows Server 2012 & 2012R2 (64-bit) Windows 7 (32-bit, 64-bit) Windows Server 2008 R2 (64-bit) *Microsoft .NET 4.5 is required for all |
Power Supply | 100-240 V AC In, 5 VDC Out, 15 W DIN4 Locking Power Connector Power Cords/Adapters Included: US, EU, GB/HKG, AU/NZL |
Regulatory | CE/FCC/VCCI/ICES/C-Tick/KCC Class B, ROHS/WEEE |
Operating Temperature | 32 to 113°F (0 to 45°C) |
Non-Operating Temperature | -40 to 131°F (-40 to 55°C) |
Operating Humidity | 20 to 80% (non-condensing) |
Non-Operating Humidity | 5 to 95% (non-condensing) |
Mean Time Between Failures (MTBF) | Encoder: 135.05 years @ 104°F (40°C) (excluding power supply) Decoder: 164.81 years @ 104°F (40°C) (excluding power supply) External Power Supply: 11.45 years @ 77°F (25°C), full load Fanless (no moving parts) |
Rackmount | Optional rackmount tray supported Encoder: Dual Density 1U Decoder: Triple Density 1U (horizontal mount); or 10-unit density in 3U (vertical mount) |
Dimensions | Encoder: 8.5 x 1 x 4" (22 x 2.6 x 10.2 cm) Decoder: 5 x 1 x 4.3" (13 x 2.6 x 11 cm) |
Weight | Encoder: 0.83 lb (378 g) (excluding external power supply and power cords) Decoder: 0.63 lb (286 g) (excluding external power supply and power cords) |
In the Box
- Matrox Maevex H.264 Encoder & Decoder
- 2 x Power Supplies with US, EU, GB/HKG, and AU/NZL Adapters
- CAT5e Ethernet Cable, 6 ft (1.8 m)
- DVI Male to HDMI Female Adapter
- 3.5mm Analog Stereo Audio Cable, Male to Male, 6 ft (1.8 m)
- 2 x Quick Setup Guide
- 2-Year Manufacturer Warranty
