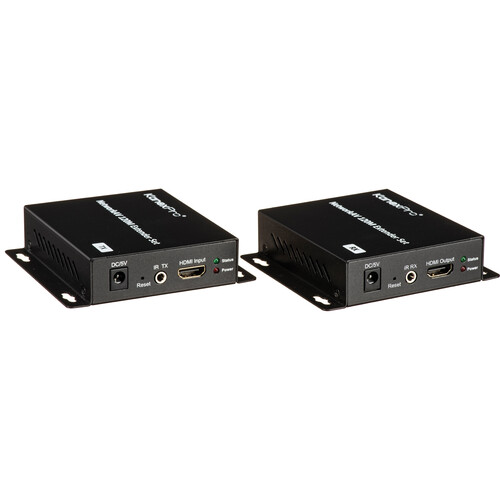

KanexPro NetworkAV HDMI over IP Extender Transmitter/Receiver Set
EAN: 813982021174
Extend and distribute HDMI video signals over a local area network (LAN) with this KanexPro NetworkAV HDMI over IP Extender Transmitter/Receiver Set. Consisting of a transmitter, a receiver, and power supplies for the units, this kit can either extend an HDMI signal by itself or bolster an existing video-over-IP network. Ethernet allows video transmission over longer distances than normally allowed by conventional HDMI cables, up to 394 in this case. Since the video is transmitted over IP, standard networking equipment can be used to distribute video. The ability to distribute video from a single source to many displays through an Ethernet switch is great for digital signage and event-space coverage. Multimedia applications can serve video from a selection of sources to a single display using the simple front-panel interface.
Extends 1080p HDMI signals up to 394 over a single Ethernet cable
Uses MJPEG compression technology
Supports Point-to-Point, Point-to-Many, and Many-to-Many network configurations (requires VLAN setup)
Control via IR (Kit included)
Wideband IR control (38-56 kHz) to the source
HDCP compliant
Supports TCP/IP protocol
Metal enclosure built with mounting ears
5 VDC power supplies included
EAN: 813982021174
Extend and distribute HDMI video signals over a local area network (LAN) with this KanexPro NetworkAV HDMI over IP Extender Transmitter/Receiver Set. Consisting of a transmitter, a receiver, and power supplies for the units, this kit can either extend an HDMI signal by itself or bolster an existing video-over-IP network. Ethernet allows video transmission over longer distances than normally allowed by conventional HDMI cables, up to 394 in this case. Since the video is transmitted over IP, standard networking equipment can be used to distribute video. The ability to distribute video from a single source to many displays through an Ethernet switch is great for digital signage and event-space coverage. Multimedia applications can serve video from a selection of sources to a single display using the simple front-panel interface.
Extends 1080p HDMI signals up to 394 over a single Ethernet cable
Uses MJPEG compression technology
Supports Point-to-Point, Point-to-Many, and Many-to-Many network configurations (requires VLAN setup)
Control via IR (Kit included)
Wideband IR control (38-56 kHz) to the source
HDCP compliant
Supports TCP/IP protocol
Metal enclosure built with mounting ears
5 VDC power supplies included
KanexPro EXT-AVIP120 Specs
| Inputs | Transmitter: 1 x HDMI Type-A 1 x 3.5mm, IR Receiver: 1 x RJ-45, Ethernet |
| Outputs | Transmitter: 1 x RJ-45, Ethernet Receiver: 1 x HDMI Type-A 1 x 3.5mm, IR |
| Supported Video Resolutions | 1080p 1080i 720p 576p 480p PAL |
| Transmission Distance | 394` / 120 m |
| Video Signal | Input Video Signal: 0.5-1 VDC, P-P Input DCC Signal: 5 VDC P-P (TTL) |
| Power Consumption | 3 W (maximum) per unit |
| Operating Temperature | 23 to 95°F / -5 to 35°C |
| Humidity | 5-90% RH, non-condensing |
| Dimensions | 4.1 x 3.7 x 1" / 10.3 x 9.4 x 2.5 cm per unit |
| Weight | 7.8 / 220 g per unit |
In the Box
- KanexPro NetworkAV HDMI over IP Extender Transmitter/Receiver Set
- Transmitter
- Receiver
- 2 x Power Supply
- 2 Years Manufacturer Warranty
