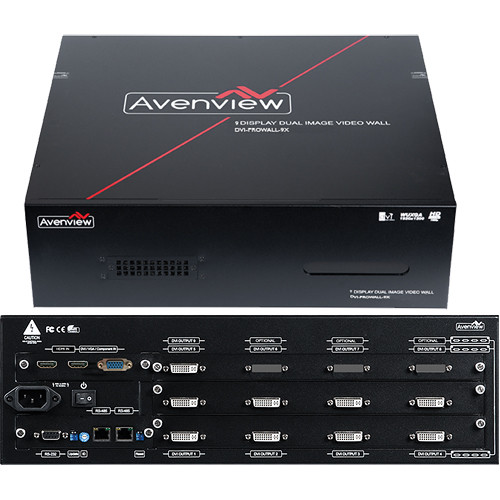

Avenview DVI-PROWALL-9X Overview
The DVI-PROWALL-9X 9-Display Videowall Processor is designed to expand one video input to up to 9 displays in different layouts in real time. Real-time processing is made possible through digital transmission processing chips for displaying content on your flat panel displays or projectors.
The unit can accommodate resolutions of up to 4K (3840 x 2160) at 30 fps through one of its HDMI ports. In its standard configuration, this unit can support up to nine DVI or HDMI outputs, though it can be upgraded with an optional card to enable output to 12 displays. The DVI-PROWALL-9X allows you to input 2 DVI/HDMI - the first HDMI port supports up to 4k, the second HDMI port supports up to 1080p, and the VGA/Component port supports up to WUXGA (1920x1200).
Features
9 DVI outputs from 640x480 to 1920x1200
Supports one HDMI input resolution up to 4K, other inputs up to WUXGA
Supports VGA and Component input format from 640x480 to 1920x1200
PIP, side-by-side (PAP), full-screen modes and adjustable size and position through software
Resize, position, flip, zoom output video
Each DVI output has an independent controllable display area
User-selectable output settings, up to 1920x1200
Software control through RS-232 and Ethernet
PCIE-interface add-on card design
Perfectly as a video screen splitter, a video converter, and a video switcher
HDCP compliant
Supports input rotation
2.5 RU size
EAN: 606825934782
| Inputs | 2 x DVI/HDMI 1 x VGA 1 x Component 1 x RS232 1 x RJ45 |
| Outputs | 9 x DVI-D/HDMI |
| Video Format Support | HDMI DVI VGA Component |
| Video Bandwidth | DVI: Single-link 4.95 Gbps HDMI: 2.25 to 6.75 Gbps Component: 30 MHz |
| Resolution Support | Up to 3840x2160p30 |
| HDCP Compliant | Yes |
| Control | Ethernet RS232 |
| Input TMDS signal | 1.2 Volts [peak-to-peak] |
| ESD Protection | Human body model - ±19kV [air-gap discharge] & ±12kV [contact discharge] |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Relative Humidity | 20~90% [no condensation] |
| Power Supply | 100-240 VAC |
| Power Consumption | 60 W (max) |
| Dimensions | 17.25 x 17.25 x 3.5" / 438 x 438 x 89 mm |
| Weight | 30 lb / 13.6 kg |
Packaging Info
| Package Weight | 24.35 lb |
| Box Dimensions (LxWxH) | 22.1 x 18.6 x 10.4" |
In the Box
- Avenview DVI-PROWALL-9X 9-Display Videowall Processor
- IR Remote
- 2 x DVI to HDMI Adapter
- VGA to Component Breakout Cable
- Power Cord
- Rack Ear Set
- 3-Year Manufacturer Warranty
