EAN: 030519038294

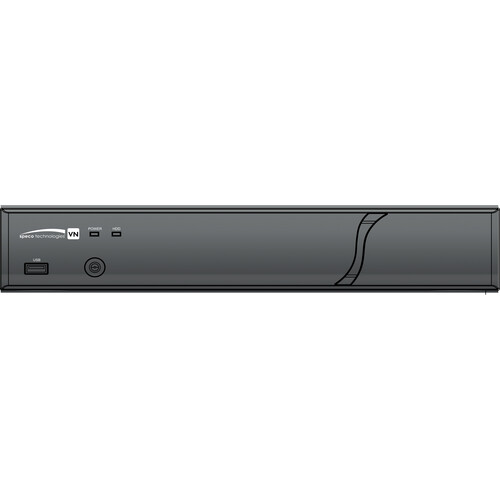

Record from and manage up to 16 analog cameras at resolutions up to 4MP with the D16VN 16-Channel 4MP HD-TVI DVR with 4TB HDD from Speco Technologies. This DVR supports up HD-TVI signals. It is equipped with an HDD bay that has a storage capacity up to 10TB (4TB preinstalled). H.265 and H.264 video codecs keep file sizes manageable while maintaining the best quality possible.
This NDAA-compliant DVR supports two-way audio. An HDMI and a VGA port enable video output to an external monitor (available separately) at up to 4K UHD resolution.
Supports coaxial cable runs of up to 1600
UTC function enables zoom/focus and OSD control over coax
Digital zoom, daylight saving time, internal beep, multilingual menus, and system event notification (health, restart, shutdown, panic recording, alarm, motion, HDD alert, and email)
EZ Wizards simplify use and setup
HDMI and VGA video outputs
Digital Deterrent for triggering during sensor or motion detection
Free US-based DDNS server access
Built-in S.M.A.R.T technology
Password to secure installation authorization
Firmware upgrades via USB port
4-channel audio recording
Instant and convenient backup via USB flash drive
Simultaneous playback/record while continuing network transfer or backup
Smart (Museum) Search allows quick search for specific video events without the need for motion setup
Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via internet
Up to 12 simultaneous users for live viewing, along with one user for playback
Network access via SpecoTech multi-client software, SecureGuard, SecureGuard client, web viewer, Speco Player mobile app, Apple TV, and Amazon Fire TV
Speco Technologies D16VN Specs
General
| Signal | HD-TVI |
| Number of Channels | 16 |
| Playback Resolution | HDMI: 3840 x 2160 VGA: 1920 x 1080 |
| Recording Resolution | 4 MP at 30 fps 4 MP at 15 fps 3 MP at 18 fps 2 MP at 30 fps |
| PTZ Support | Yes |
| Playback Speeds | 0.25x, 0.5x, 2x, 4x, 8x, 16x, 32x, 64x |
| Dual Streaming | Yes |
| 2-Way Audio | Yes |
Connectivity
| A/V Inputs/Outputs | HD-TVI: 16 x BNC 1 x BNC Output 1 x HDMI 1 x VGA |
| Communication Inputs/Outputs | 1 x RJ45 Gigabit Ethernet 1 x RS-485 2 x USB-A |
| Audio Inputs/Outputs | 4 Inputs 1 Output |
| Wi-Fi | None |
| Maximum User Access | 12 |
| Simultaneous Connections | 12 |
| Network Protocols | DDNS, NTP |
| Transmission Distance | 1600` / 487.7 m |
| Max Frame Rate | 30 fps (4 MP) |
Compatibility
| Supported Video Codecs | H.264, H.265 |
| Supported Audio Codecs | G.711 |
| Backup Formats | AVI, EXE, JPEG, Proprietary |
| Backup Method | External HDD, Network, USB Drive |
| Software Upgrade | USB, Network |
System
| Installed Drive | 4 TB Hard Drive |
| Max Capacity Supported | 10 TB (Total) |
| OS Compatibility | Android iOS Windows macOS *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Recording Intervals | 20 Minutes (Pre-Record) 60 Seconds (Post-Record) |
| Recording Modes | Continuous, Manual, Motion, Schedule, Sensor, Smart |
| Search Modes | Date/Time, EZ Search, Event, Log, Museum |
| Multi-Screen Configuration | 1, 4, 9, 16 |
Notifications
| Alarm Inputs/Outputs | 4 Inputs 1 Output |
| Event Trigger | Motion |
Electrical
| Power Consumption | 12 VDC at 3 A |
Environmental
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Operating Humidity | 20 to 80% |
| Storage Temperature | 14 to 122°F / -10 to 50°C |
Physical
| Certifications | CE, FCC, NDAA, TAA *as per Manufacturer |
| Built-In Display | None |
| Dimensions (W x D x H) | 11.8 x 9.9 x 2.0" / 30.0 x 25.1 x 5.1 cm |
| Weight | 4.35 lb / 1.97 kg |
Packaging Info
| Package Weight | 5.48 lb |
| Box Dimensions (LxWxH) | 16.7 x 10.8 x 4" |
In the Box
- Speco Technologies D16VN 16-Channel 4MP HD-TVI DVR with 4TB HDD
- Remote Control
- 2 x AAA Batteries
- Mouse
- Power Cable & Adapter
- 5-Year Manufacturer Warranty
